Comparison of Dual-lens & Auto-Zoom Tracking Surveillance Camera |
||
|
Model Name |
Trackmix Series PoE Camera |
Trackmix Series WiFi Camera |
|
Appearance |
|
|
|
Resolution |
Max. 4K (3840 x 2160) |
|
|
Frame rate |
Max. 25 FPS |
|
|
Image Sensor |
1/3"+1/2.8"CMOS Sensor |
|
|
Lens |
f=2.8mm@F=1.6，f=8mm@F=1.6 |
|
|
Field of view* |
H: 104°-38°; V: 60°-21° |
|
|
Power supply method |
PoE (Power over Ethernet) |
Power cable |
|
Battery storage |
– |
– |
|
Power |
DC12V /2A & |
DC12V/2A |
|
DC Power |
DC 12V/2A,<12W 2.1MM |
|
|
100% wire-free |
x |
x |
|
Network connection |
Ethernet Cable |
2.4/5 GHz dual-band WiFi |
|
Local storage (Micro SD card) |
Max. 256 GB |
|
|
Number of lenses |
Wide-angle & telephoto lenses |
|
|
Night vision |
Color night vision; |
|
|
IR night vision up to 100 ft |
||
|
Light equipped |
Spotlights & IR LEDs |
|
|
Audio |
With mic & speaker for 2-way audio |
|
|
Video format |
||
|
Waterproof |
Support |
|
|
Zoom |
6X hybrid zoom |
|
|
Pan & tilt |
355º pan & 90º tilt |
|
|
Tracking method |
Auto-zoom tracking |
|
|
PIR motion sensor |
x |
x |
|
Smart features |
Motion detection; Person/vehicle/pet detection |
|
|
Remote access & alerts |
√ |
√ |
|
Continuous recording |
√ |
√ |
|
Time lapse |
√ |
√ |
|
Cloud storage (Available in several countries) |
x |
x |
|
Smart home |
Google Assistant; Amazon Alexa |
|
|
Works with Reolink PoE NVR |
√ |
√ |
|
Works with Reolink IoT devices |
√ |
√ |
|
FTP |
√ |
√ |
|
RTSP |
√ |
√ |
|

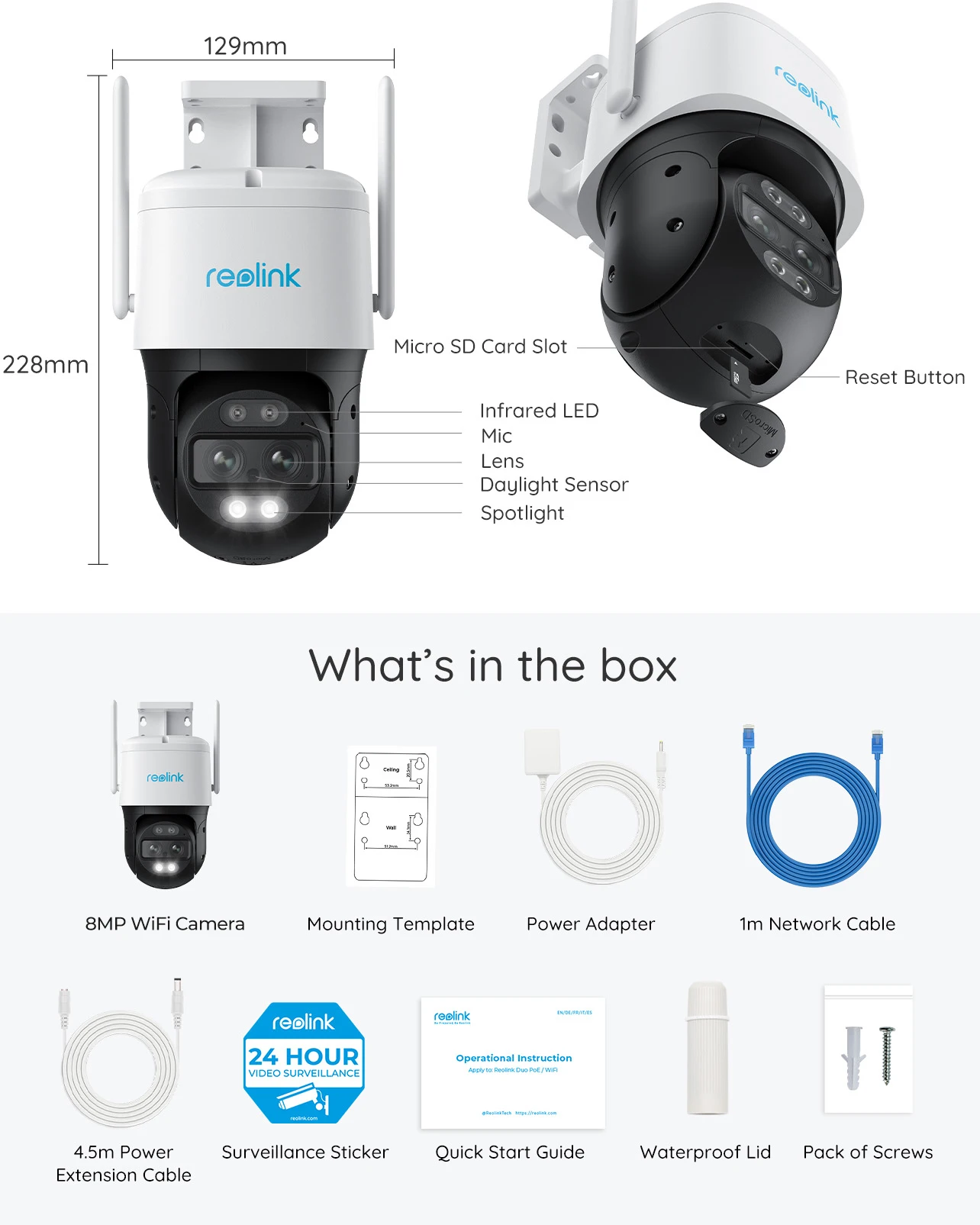

Dimension |
228*147*110mm |
228*147*129mm |
|
Weight |
1.21KG |
1.21KG |
|
Recommended application scenarios |
Garage, cinema, warehouse, shopping mall, hospital, etc. |
|
|
Note |
*The data on the pages above are obtained under specific test conditions. |
|

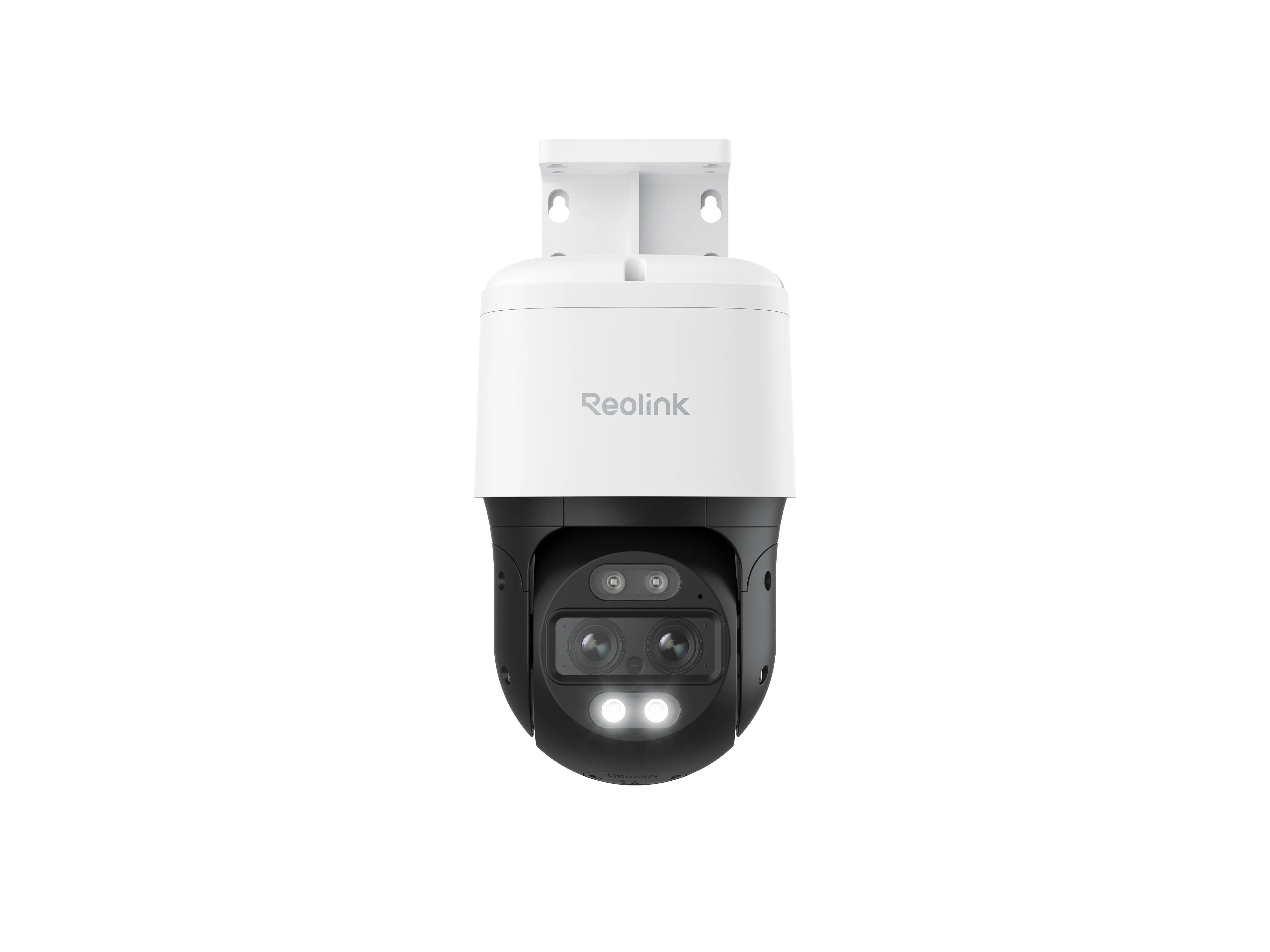

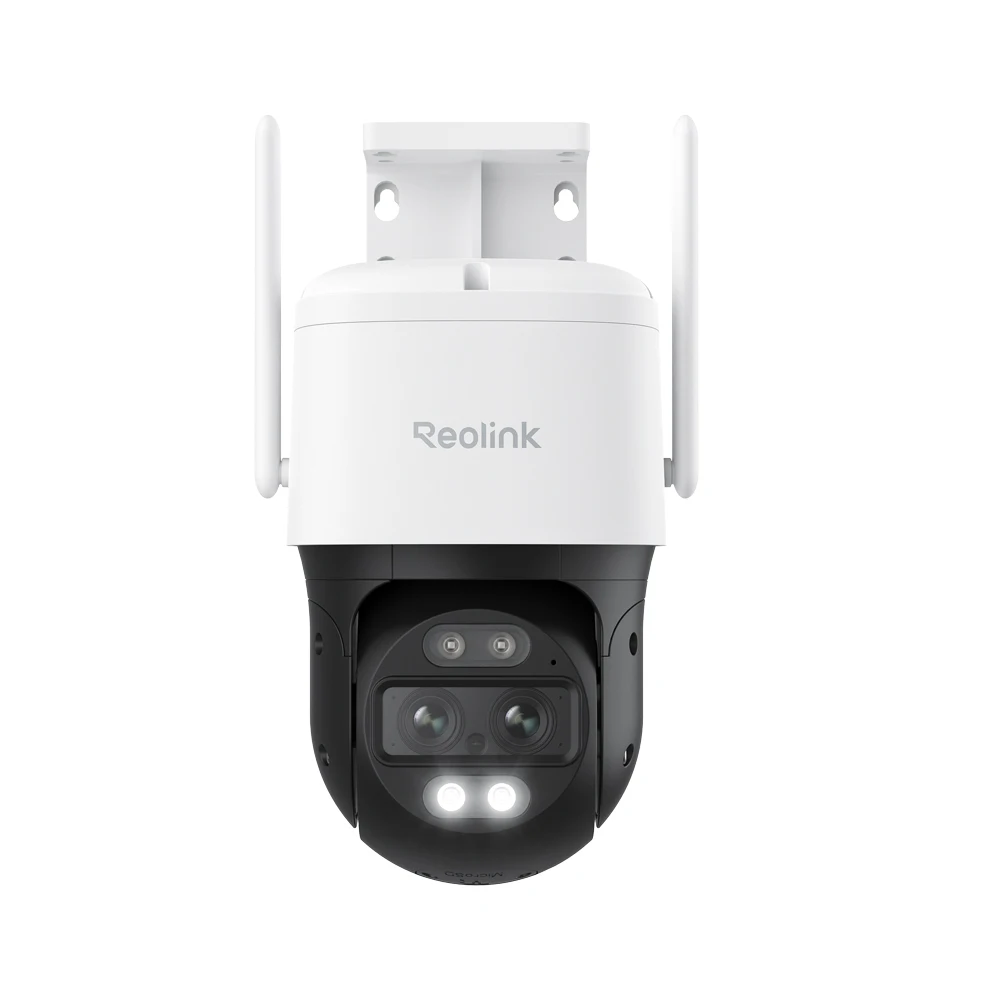

Reolink 4k Dual Lens PTZ Auto Tracking Outdoor Poe & WiFi Camera
4K HD & Big picture & Big Detail
The Wide-Angle & Telephoto dual Lenses camera captures both full-view and close-up images of the same event synchronously, and presents them on the same screen.
Its 6X hybrid zoom allows you to zoom in for astonishing details or zoom out for maximum coverage.
*The POE & WiFi camera has only one pixel lens combinations, which is 4K 8mm Wide-Angle Lenses + 1080P 2.8mm Telephoto Lenses.
1080P =2MP.
AI Person/Vehicle Detection & Accurate Alerts & Without Subscription
You don' t need to subscribe for the camera' s capacity to detect people and vehicles. It can analyze the shapes of people and vehicles, thus sending you more accurate and meaningful alerts in real time.
Auto Track & Auto Focus
The dual-tracking camera can pan, tilt (up to 355°H, 90°V) to autotrack the object and show it in both the panoramic and zoomed views.
Active deterrence to scare the unwelcomed away
When having detected the unwelcomed approaching, the built-in siren goes off and the spotlight turns on to deter unwelcome strangers, You also will get alerted via email, push notifications from Reolink App.
Two-way Audio, Talk Like You're Here
Built-in microphone & speaker allow you to listen and talk to whoever the camera catches in real time: A "hello" to families and friends or warning to suspicious strangers.
Color Night Vision With Spotlights On
The built-in IR LEDs and spotlights allow you to clearly see objects in color at night, keeping your family firmly guarded after sundown.
PoE Makes Easier Wiring and Installation
The Power over Ethernet (PoE) is an advanced technology, which enables you to use a single network cable for both video and power transmission, installation easier! Besides, thanks to PoE you will never worry about electric leaks!
*Just for PoE Version Camera
Smart Home Platform&2.4/5GHZ Dual-band wifi
*Just the WiFi Version support the dual-band wifi
Have Fun with Time Lapse
The PoE camera supports time-lapse video recording, you can film snow piling up in your backyard, or record construction process in minutes.
Note: Only its wide-angle view supports time lapse, which is incompatible when camera is connected to NVRs.

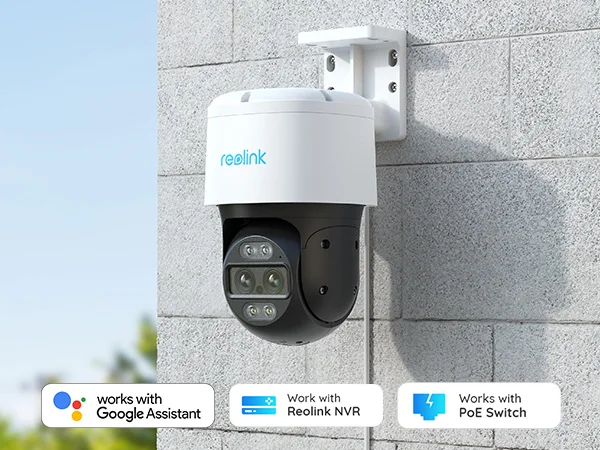

Certified Weatherproof
The PoE camera can work perfectly in both indoor and outdoor environments. It is designed for harsh environments, and its robust housing can withstand intense heat, humidity and cold.
Multiple Recording Options
This smart IP camera supports 24/7 continuous, motion-triggered, or scheduled recordings. All the videos can be saved to the micro SD card, Reolink NVR or FTP server. Choose a way you like and enjoy customized security.
Smart Home Platform
As easy as saying "Hey Google, show me the backyard", you can check what's happening there on your Google Nest Hub or Chromecast-enabled TVs.
*Works with Google Assistant and Amazon Alexa.
See more details of TrackMix Series Poe Camera
See more details of TrackMix Series WiFi Camera
PS:
DC Power adapter is NOT included in the box of the PoE camera.
The ratings of power adapter should be DC 12V 2/1A.
You may order the DC power adapter additionally via the link of Reolink DC power adapter or Reolink PoE Injector.
Q: What is Hybrid zoom?
A: Hybrid zoom is a combination of optical zoom and digital zoom. Reolink Trackmix series are equipped with a wide-angle lens and a telephoto lens. First, the wide-angle lens provides digital zoom. Then it switches to the telephoto lens for optical zoom. After that, the telephoto lens zooms in digitally. Thus, compared to digital zoom, hybrid zoom can retain more details and provide sharper images when zooming in.
Q: What is dual-tracking?
A: Dual-tracking refers to the two ways that a Trackmix camera simultaneously uses to auto track an object in both the wide-angle and zoomed views.
Q: Can I use this camera with Synology?
A: Yes, this PoE IP camera can work with Synology. There are 2 methods for you to save videos in it.
Method 1 (recommended): You can add this camera to the Synology Surveillance Station. Please contact Reolink customer service in Aliexpress Message to learn how to add a camera.
Method 2: You can treat your Synology device as an FTP server. For detailed steps, please contact Reolink customer service in Aliexpress Message to check How to Set up FTP for Reolink Products.
Please note that by default the wide-angle view will be shown on the Synology. You can manually switch it to the zoomed view. For a dual-view display, make sure the camera can occupy two channels.
Q: Can I turn off the spotlights?
A: Yes, you can turn off the spotlights manually.
By default, the camera's spotlights are motion activated: it will turn on automatically when a motion is detected. You can turn them off or adjust the brightness to your liking.
Please note that with the spotlights on you can enjoy clear color night vision, but if the spotlights are turned off, you will only see black and white images at night.
Q: Can this camera support smart home like Google Assistant?
A: Yes. Please note that only its wide-angle view supports Google Assisstant.
Q: Can this camera be used outdoors/indoors?
A: Yes. It is certified weatherproof and its operating temperature is from -10°C to 55°C, perfect for outdoor and indoor usage.
Q: CHow can I power up this camera?
A: There are two methods:
1. Via an Ethernet cable, connect the camera to a PoE NVR, PoE injector, PoE switch, or directly to a router with a PoE port, for both power supply and video signal transmission.
Note: Please make sure that the PoE injector/switch is 802.3at compliant (48V) and supports active mode.
2.Via its DC 12V 2A power adapter for power supply only.(Not luded in the box)
