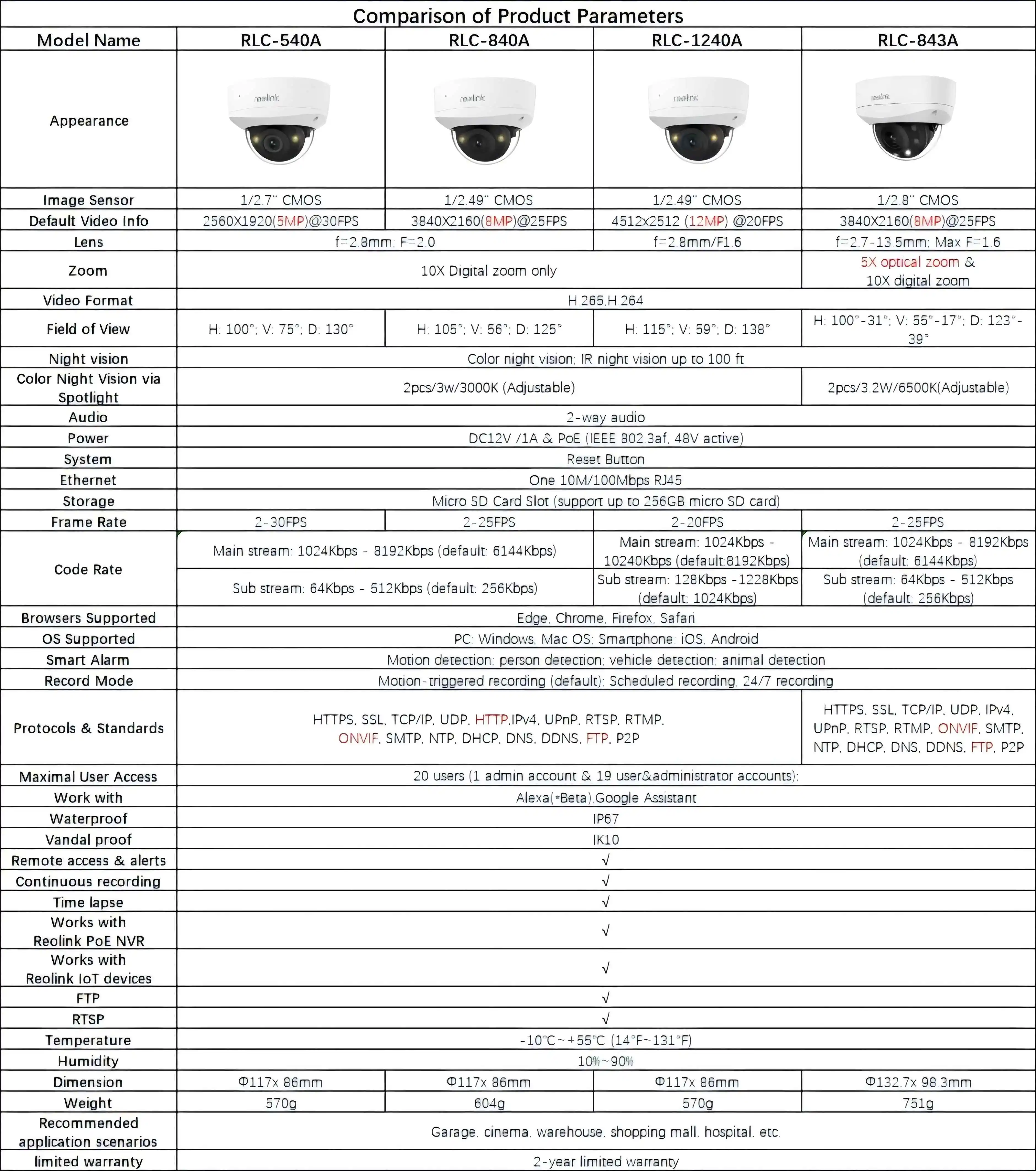

Comparison of Product Parameters |
||||
|
Model Name |
5MP Cam |
8MP Cam |
12MP Cam |
8MP Zoom Cam |
|
Appearance |
|
|
|
|
|
Image Sensor |
1/2.7" CMOS |
1/2.49" CMOS |
1/2.49" CMOS |
1/2.8" CMOS |
|
Default Video Info |
2560X1920(5MP)@30FPS |
3840X2160(8MP)@25FPS |
4512×2512 (12MP) @20FPS |
3840X2160(8MP)@25FPS |
|
Lens |
f=2.8mm; F=2.0 |
f=2.8mm/F1.6 |
f=2.7-13.5mm; Max F=1.6 |
|
|
Zoom |
10X Digital zoom only |
5X optical zoom& |
||
|
Video Format |
H.265,H.264 |
|||
|
Field of View |
H: 100°; V: 75°; D: 130° |
H: 105°; V: 56°; D: 125° |
H: 115°; V: 59°; D: 138° |
H: 100°-31°; V: 55°-17°; D: 123°-39° |
|
Night vision |
Color night vision; IR night vision up to 100 ft |
|||
|
Color Night Vision via Spotlight |
2pcs/3w/3000K (Adjustable) |
2pcs/3.2W/6500K (Adjustable) |
||
|
Audio |
2-way audio |
|||
|
Power |
DC12V /1A & PoE (IEEE 802.3af, 48V active) |
|||
|
System |
Reset Button |
|||
|
Ethernet |
One 10M/100Mbps RJ45 |
|||
|
Storage |
Micro SD Card Slot (support up to 256GB micro SD card) |
|||
|
Frame Rate |
2-30FPS |
2-25FPS |
2-20FPS |
2-25FPS |
|
Code Rate |
Main stream: 1024Kbps – 8192Kbps (default: 6144Kbps) |
Main stream: 1024Kbps – 10240Kbps (default:8192Kbps) |
Main stream: 1024Kbps – 8192Kbps (default: 6144Kbps) |
|
|
Sub stream: 64Kbps – 512Kbps (default: 256Kbps) |
Sub stream: 128Kbps -1228Kbps (default: 1024Kbps) |
Sub stream: 64Kbps – 512Kbps (default: 256Kbps) |
||
|
Browsers Supported |
Edge, Chrome, Firefox, Safari |
|||
|
OS Supported |
PC: Windows, Mac OS; Smartphone: iOS, Android |
|||
|
Smart Alarm |
Motion detection; person detection; vehicle detection; animal detection |
|||
|
Record Mode |
Motion-triggered recording (default); Scheduled recording, 24/7 recording |
|||
|
Protocols & Standards |
HTTPS, SSL, TCP/IP, UDP,HTTP,IPv4, UPnP, RTSP, RTMP, |
HTTPS, SSL, TCP/IP, UDP, IPv4, UPnP, RTSP, RTMP,ONVIF, SMTP, NTP, DHCP, DNS, DDNS,FTP, P2P |
||
|
Maximal User Access |
20 users (1 admin account & 19 user&administrator accounts); |
|||
|
Work with |
Alexa(*Beta),Google Assistant |
|||
|
Waterproof |
IP67 |
|||
|
Vandal proof |
IK10 |
|||
|
Remote access & alerts |
√ |
|||
|
Continuous recording |
√ |
|||
|
Time lapse |
√ |
|||
|
Works with |
√ |
|||
|
Works with |
√ |
|||
|
FTP |
√ |
|||
|
RTSP |
√ |
|||
|
Temperature |
-10℃~+55℃ (14°F~131°F) |
|||
|
Humidity |
10%~90% |
|||
|
Dimension |
Φ117x 86mm |
Φ117x 86mm |
Φ117x 86mm |
Φ132.7x 98.3mm |
|
Weight |
570g |
604g |
570g |
751g |
|
Recommended application scenarios |
Garage, cinema, warehouse, shopping mall, hospital, etc. |
|||
|
limited warranty |
2-year limited warranty |
|||

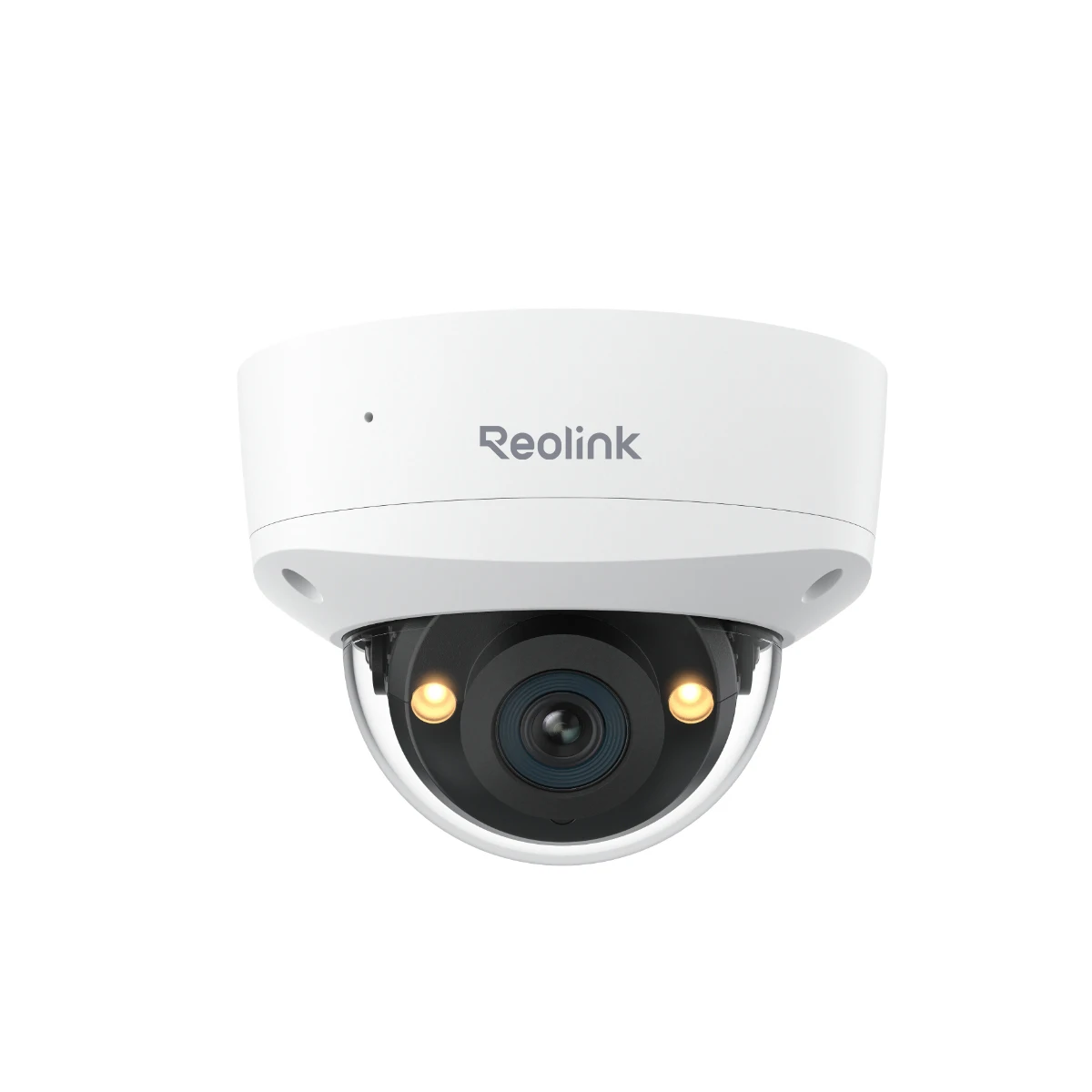

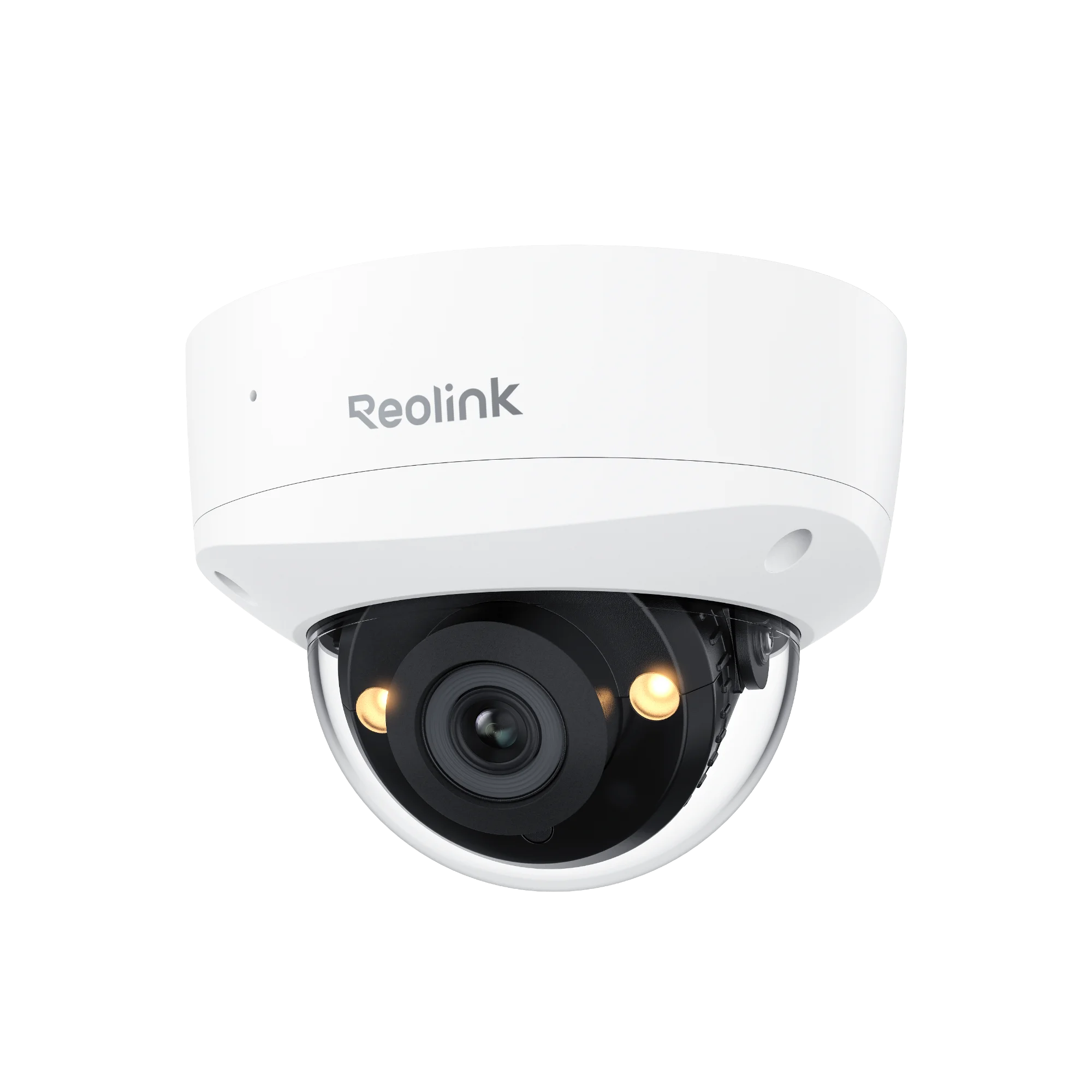

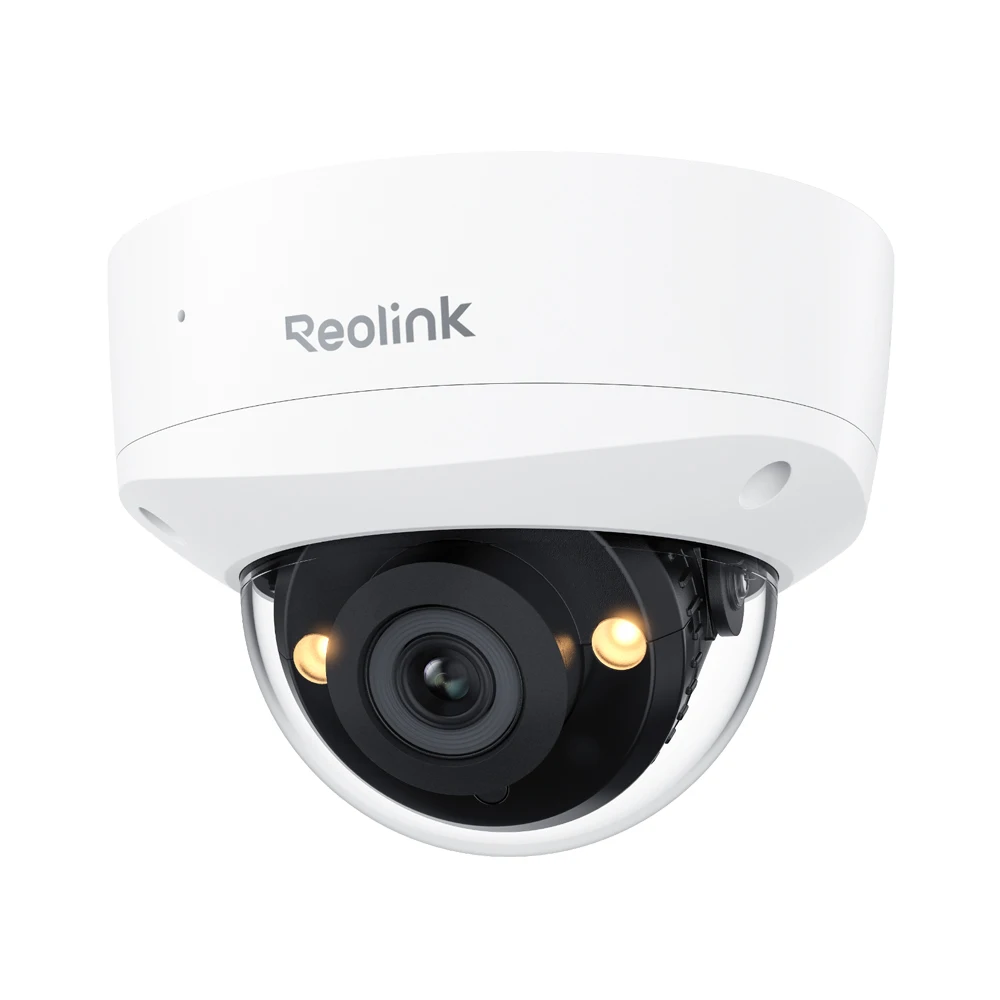

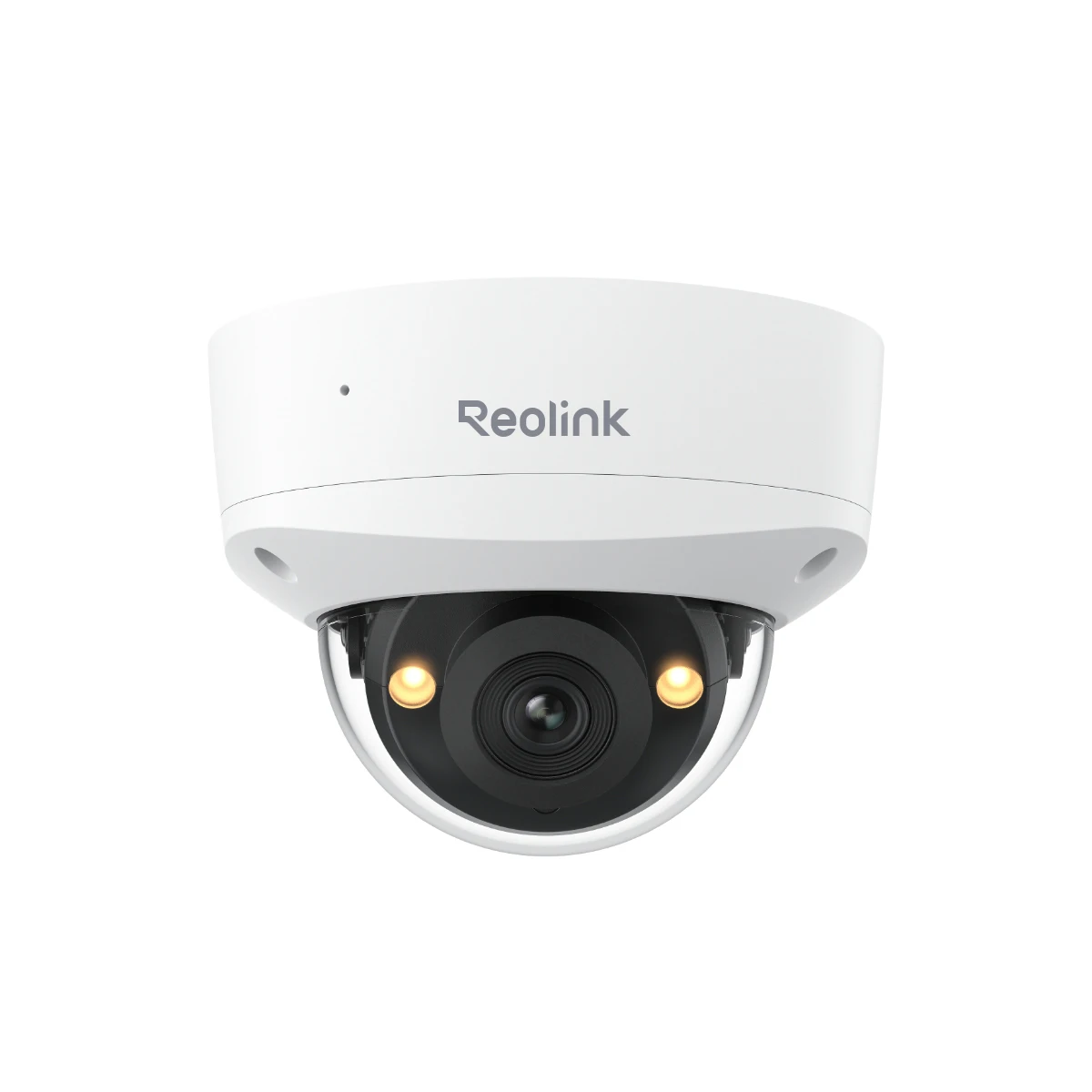

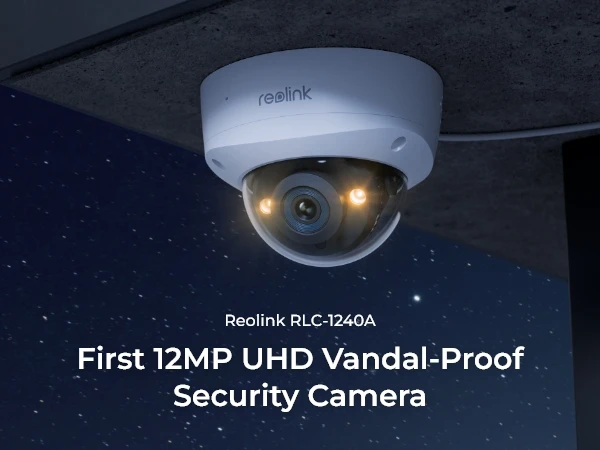

First 12MP UHD Vandal-Proof IP Camera With Color Night Vision
12MP HD View at Ultra-Wide 145° Field of View
An expansive 145° field of view ensures no blind spots are left. Ideal for monitoring large areas with a single device.
Crisp Color Night Vision
Capture details in clarity with 3000K warm light, see clearly what's happening around your home.
Advanced Security Starts with Smarter Detection
Featuring person, vehicle, and animal detection to minimize false alarms. No monthly fees required!
Detect Wherever You Want
Decide which motion zone will be detected. You won't receive alerts from the areas you have erased.

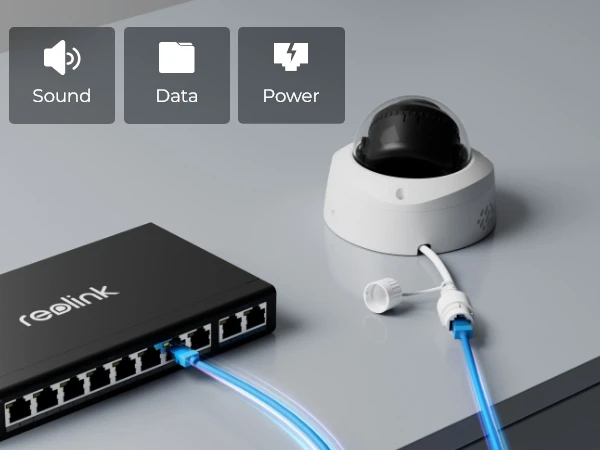

Effortless Setup with PoE
Thanks to the advanced PoE tech, enjoy both 12MP videos and a stable power supply via a single cable

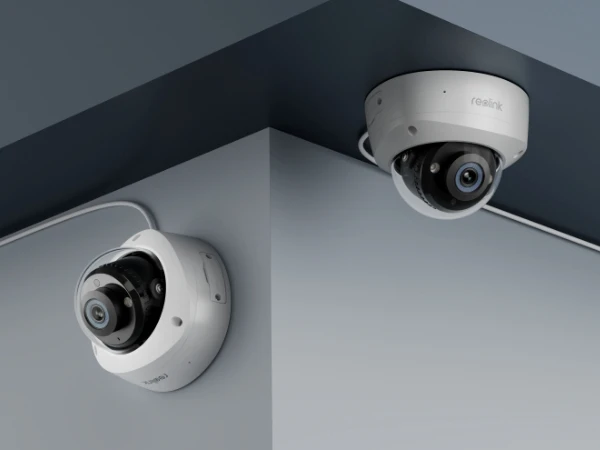

Easy Installation
Equipped with crafted mounting brackets, this camera can be easily installed on the ceiling or wall.

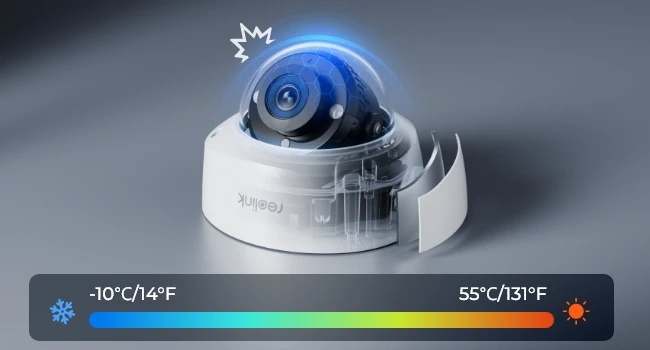

Rugged Durability, Unyielding Performance
Flexible Storage Options & Multi-User Access
