Comparison of Dual-lens Surveillance Camera |
||
|
Model Name |
8MP Cam |
16MP Cam |
|
Resolution |
4K 8MP (4608 x 1728) |
16MP(7680 x 2160) |
|
Image Sensor |
1/2.7" CMOS sensor |
|
|
Lens |
f=3.2mm fixed/F2.0 |
f=2.8mm/F1.6 |
|
Frame rate |
Max. 20 FPS |
|
|
Video Format |
H.265 |
|
|
Field of view* |
H: 180º;V: 60º |
H: 180º; V: 55º |
|
Power supply method |
PoE (Power over Ethernet) |
|
|
Power |
DC12V/2A & PoE (IEEE 802.3af) |
|
|
Ethernet |
One 10M/100Mbps RJ45 |
|
|
Local storage |
microSD card slot (Max. 256GB) |
|
|
Number of lenses |
Two |
|
|
Night vision |
Color night vision(Spotlight: 8pcs/5W/6500K/560 Lumens) |
|
|
30 meters (LED: 6pcs/20mil/850nm) |
||
|
Audio |
With mic & speaker for 2-way audio |
|
|
Zoom |
10X Digital zoom only |
|
|
Smart Alarm |
Motion detection; person detection; vehicle detection; animal detection |
|
|
Record Mode |
Motion-triggered recording (default); scheduled recording, 24/7 recording |
|
|
Smart home |
Google Assistant; Amazon Alexa |
|
|
Remote access & alerts |
√ |
√ |
|
Continuous recording |
√ |
√ |
|
Time lapse |
√ |
√ |
|
Works with Reolink PoE NVR |
√ |
√ |
|
Works with Reolink IoT devices |
√ |
√ |
|
FTP |
√ |
√ |
|
RTSP |
√ |
√ |
|
Frame Rate |
Main stream: 4fps – 20fps (default: 20fps) Sub stream: 4fps – 20fps (default: 20fps) |
|
|
Code Rate |
Mainstream: 3072-10240Kbps (default: 8192kbps) Substream: 256-2045Kbps (default: 1024kbps) |
|
|
Browsers Supported |
Edge, Chrome, Firefox, Safari |
|
|
OS Supported |
PC: Windows, Mac OS; Smartphone: iOS, Android |
|
|
Protocols & Standards |
HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P |
HTTPS, SSL, TCP/IP, UDP, HTTP,IPv4, UPnP, RTSP, RTMP,ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P |
|
Recommended |
Room, courtyard, store, office, restaurant, etc. |
|
|
Temperature |
-10℃~+55℃ (14°F~131°F) |
|
|
Humidity |
10%~90% |
|
|
Waterproof |
IP67 |
IP67 |
|
Dimension |
195x103x56 mm |
|
|
Weight |
680g |
|
|
Note |
*The data on the pages above are obtained under specific test conditions. |
|

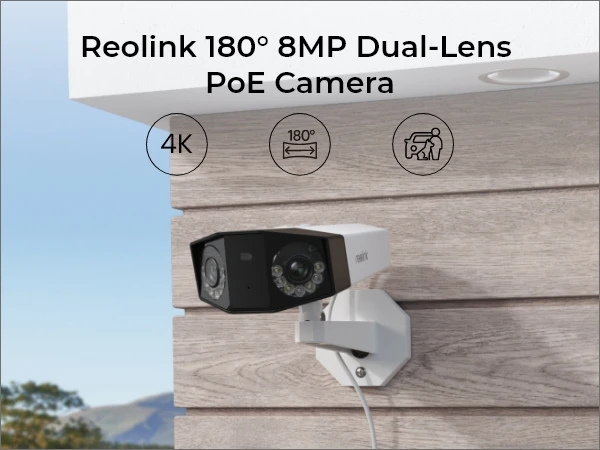

Dual Lenses for a 4K 180° Panorama
The dual lenses combine to form a seamless 180° panoramic view, merging two images for broad coverage. With a 4K 8MP resolution, it ensures that every detail is captured.
*The 16MP cam compatible Reolink NVR: Hw_N5MB01, Hw_N6MB01 or Hw_N7MB01 under the latest firmware version for 16MP. But for Hw_H3MB18, Hw_N3MB01 or Hw_N2MB02, previews in 6MP resolution on the monitor UI. Not support the third-party NVR.
Color Night Vision
With spotlights illuminating your surroundings, it captures clear nighttime footage with vibrant colors and rich details, ensuring you never lose sight, day or night.
Effortless PoE Setup, Just Plug & Play
One-cable setup for power & data, streamlining security system deployment. This user-friendly solution ensures effortless installation and reliable operation.
Smart Person/Vehicle/Animal Detection
Receive real-time notifications for suspicious people, vehicles, and animals. By distinguishing them from falling leaves or raindrops, the camera minimizes false alarms.
Sound-Light Dual Deterrents
Upon detecting motion, this camera activates spotlight and siren alarms to deter potential threats. Additionally, you can use two-way audio to scare off intruders.
Stay Connected via Your Phone/PC
Receive instant motion alerts and access your cameras with the Reolink App or Client, to view the live feeds or play back footage anytime anywhere. No monthly fees.
Supports SD Card, NVR, and FTP
This camera supports 24/7, scheduled, and motion-triggered recording with local storage on microSD card or NVR, plus backup options via FTP, or NAS.
See Through the Darkness
Camera features Color/Black & White Night Vision, catering to your diverse preferences.
Build Your Security System Easily
DIY your security system by integrating your cameras with a Reolink NVR, offering seamless central management for all your cameras.
Stunning Time-Lapse Videos
Condense an entire day's events into captivating minutes. Enjoy mesmerizing transformations.
Reliable Guardian in Any Weather
*Built to be water resistant, this IP67-rated camera endures extreme weather conditions.
