Comparison of Surveillance System NVR Product Parameters |
|||
|
Model Name |

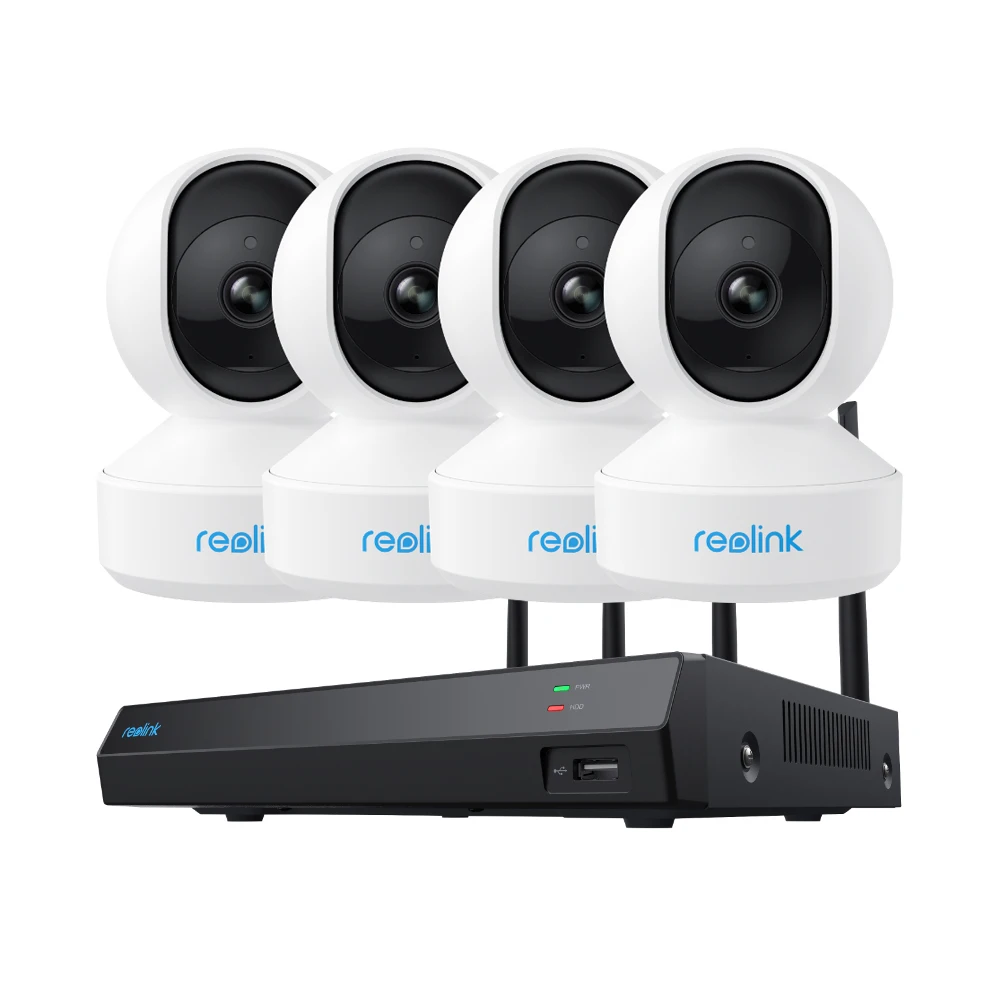

RLK12-E1 Pro |
RLK12-E1 Outdoor Pro |
RLK12-Trackmix WiFi |
|
Appearance |
|
|
|
|
Resolution |
4MP (2560×144) |
8MP (3840×2160) |
|
|
Camera included |
4*E1 Pro |
4*E1 Outdoor Pro |
4*TrackMix WiFi |
|
Cameras supported |
Up to 12 cams (12 channels) |
||
|
HDD Pre-installed |
2TB |
||
|
Cam Image Sensor |
1/2.7" CMOS Sensor |
1/2.8" CMOS Sensor |
1/3"+1/2.8" CMOS Sensor |
|
Cam Lens |
f=4.0mm; F=2.4 |
f=2.8-8mm; F=1.6 |
f=2.8mm+f=8mm; F=1.6 |
|
Cam Field of View |
Horizontal: 82° |
Horizontal: 94° ~ 50° |
Horizontal: 104°-38° |
|
Cam Operating Frequency |
2.4GHz/5GHz |
||
|
Video Compression |
H.264 |
H.265 |
H.264/H.265 |
|
Cam Night vision |
Infrared Night Vision: 12M (40ft), LED: 8pcs/14mil/850nm; |
Infrared Night Vision: 12M (40ft), LED: 8pcs/14mil/850nm; |
Infrared Night Vision: 30M (100ft), LED: 2pcs/850nm; |
|
Zoom |
10X Digital zoom only |
3X Optical Zoom & 10X Digital Zoom |
6X hybrid zoom & 10X Digital Zoom |
|
Smart features |
Person/Pet Detection |
Person/Vehicle/Animal Detection |
|
|
WiFi NVR or PoE NVR |
Wi-Fi |
||
|
Compatible Reolink cameras |
Up to 12MP PoE & Plug-in Wi-Fi cams |
||
|
Maximal storage capacity |
16TB (via SATA) |
||
|
NVR Power |
DC 12V/2A(No-PoE) |
||
|
Cam Power |
DC 5V/1A |
DC 12V/1A |
DC 12V/2A |
|
Cam Ethernet |
One 10M/100Mbps; RJ45 |
||
|
Cam Frame Rate |
25fps(Default: 15fps) |
Mainstream: 2 – 25fps; |
Mainstream: 2 – 25fps; |
|
Cam Code Rate |
1024Kbps ~ 5120Kbps |
Mainstream: 4096~8192 Kbps; |
Mainstream: 4096~8192 Kbps; |
|
Record Mode |
Motion-Triggered Recording; Scheduled Recording; 24/7 Recording |
Motion/scheduled recording |
Motion/scheduled recording |
|
Protocols & Standards |
SSL, TCP/IP, UDP, IPv4, UPnP, RTSP, SMTP, NTP, DHCP, DNS, DDNS, P2P |
HTTPS, SSL, TCP/IP, UDP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P |
HTTP, HTTPS, SSL, TCP/IP, UDP, UPNP, RTSP,RTMP, SMTP, NTP, DHCP, DNS, DDNS, P2P |
|
Working Temperature |
-10°C~+55°C (14°F~131°F) |
||
|
Working Humidity |
10% ~ 90% |
||
|
Cam Waterproof |
x |
IP65 |
IP65 |
|
24/7 recording |
√ |
√ |
√ |
|
Remote access |
√ |
√ |
√ |
|
Video playback & backup |
√ |
√ |
√ |
|
Works with |
√ |
√ |
√ |
|
Cam Dimension |
Φ76x106mm |
Φ85x118mm |
228*147*129mm |
|
Cam Weight |
200g |
415g |
1.211kg |
|
*The data on the pages above are obtained under specific test conditions. |
|||

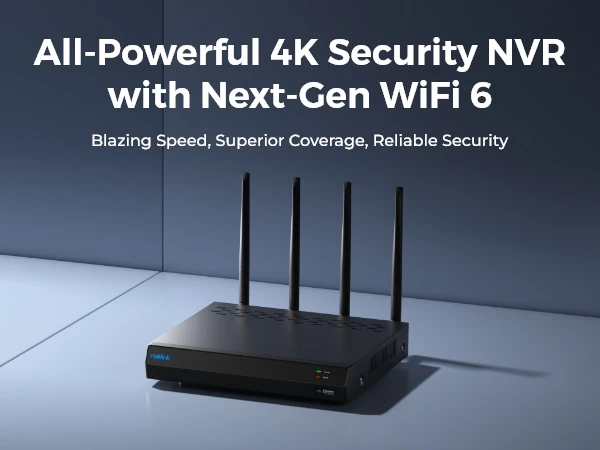

12-Channel Wi-Fi 6 NVR Recorder for 24/7 Local Recordings

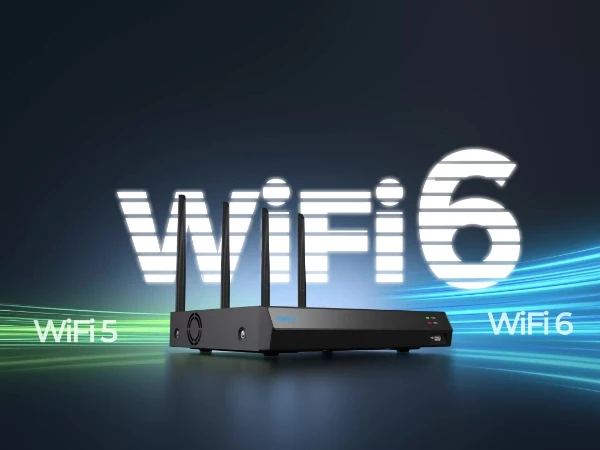

Wi-Fi 6 and 2.4/5GHz WiFi
Experience seamless streaming with 2.4/5GHz WiFi and Wi-Fi 6. Say goodbye to video buffering delays.

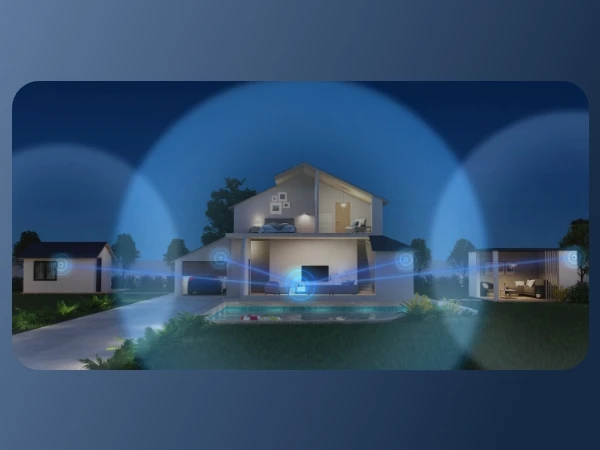

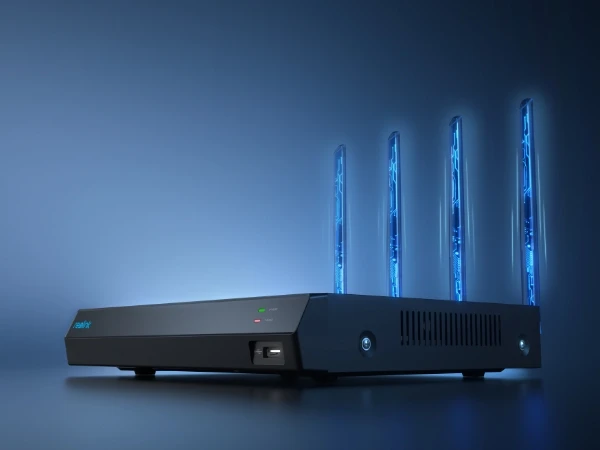

External Antennas – Improved Range
Get strong WiFi signals even over long distances with 4 antennas. Stay online and connected.

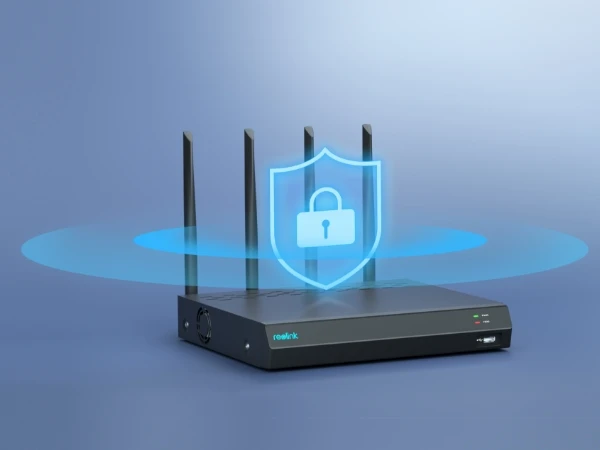

WPA3 Security Protocol – Enhanced Cyber Security
Elevate your security and provide robust encryption and protection against common cyber threats.
OFDMA & MU-MIMO – Multiscreen View Made Easier
Enjoy lag-free simultaneous streaming for the whole family with OFDMA and MU-MIMO technologies.
BSS Coloring – Less Interference, Even on Busy Network
Boost WiFi resistance to interference for a stable connection, even in complex network environments.

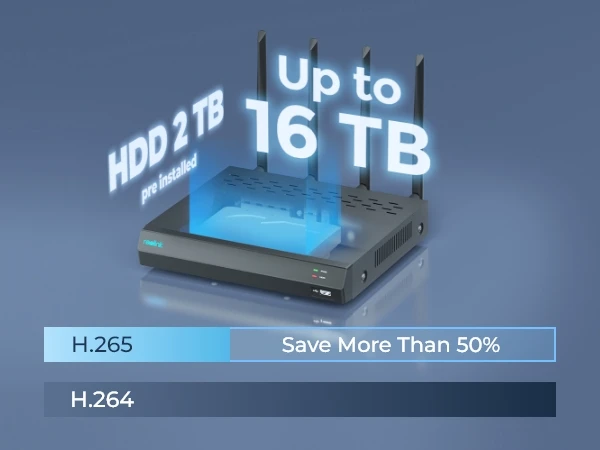

Expandable Storage – High Capacity for 24/7 Recording
With H.265 compression, save space while preserving quality. Store extensive recordings easily.
Real-Time Alerts – Reliable Guardian All the Time
Stay vigilant with immediate push notifications and emails upon detecting motion events.

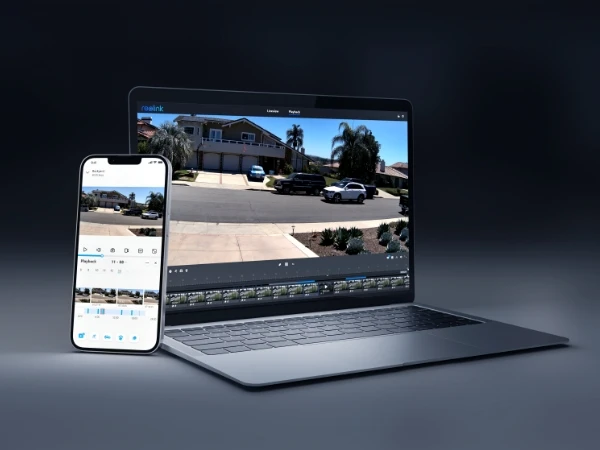

Multi-User Access – Easy Remote Access
Support max.12 devices to live stream at the same time (2 mainstreams & 10 substreams).
Smart Playback – Find What You Want to See
Effortlessly find desired footage by filtering recordings based on the chosen detection mode.

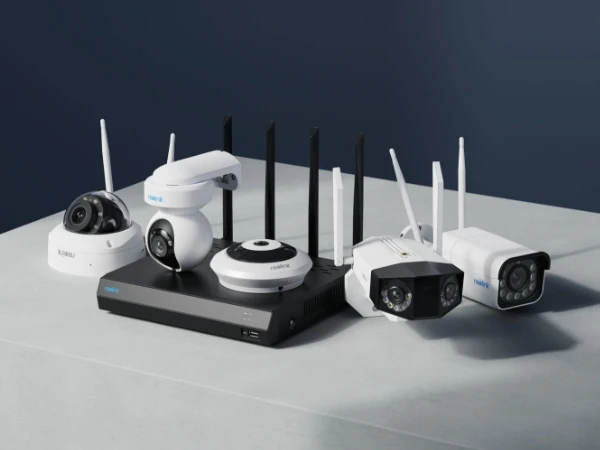

DIY Your System – Create Your Custom Security System
Select your preferred Reolink IP cameras and integrate them with the NVR to build a security system.
Hassle-Free Setup for All Users
                  Power on WiFi NVR                                  Power on WiFi Camera
Pair WiFi Camera to WiFi NVR Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Switch to Wireless Connection
Detail of RLN12W Wi-Fi NVR
What's in the Box?
RLN12W ×1; NVR Power Adapter ×1; HDMI Cable ×1; USB Mouse ×1; 1m Network Cable ×1; Quick Start Guide ×1

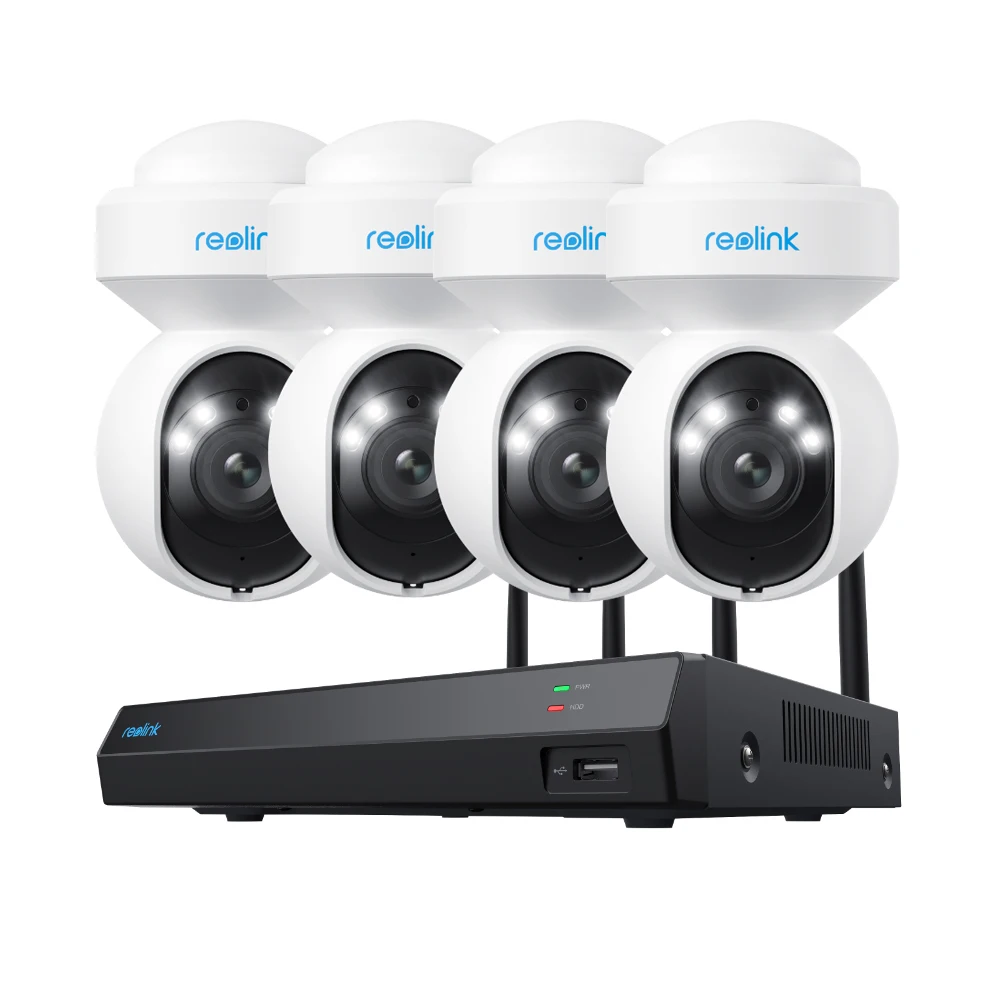

Detail of RLK12-E1 Outdoor Pro
What's in the Box?
RLN12W ×1; NVR Power Adapter ×1; HDMI Cable ×1; USB Mouse ×1; 1m Network Cable ×1; Quick Start Guide ×1;
E1 Outdoor Pro ×4; Power Adapter ×4; Reset Needle ×4; Pack of Screws ×4; 4.5m Power Extension Cable ×4; 1m Network Cable ×4; Mounting Template ×4;

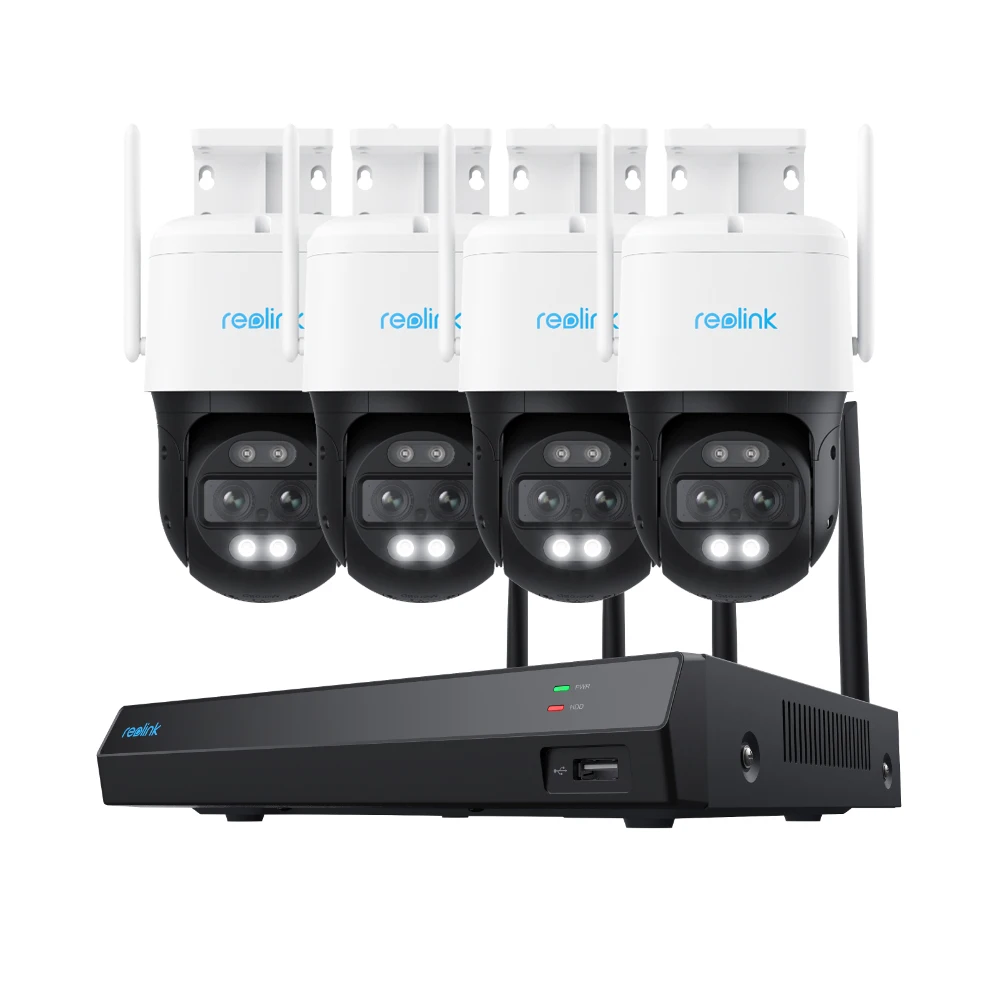

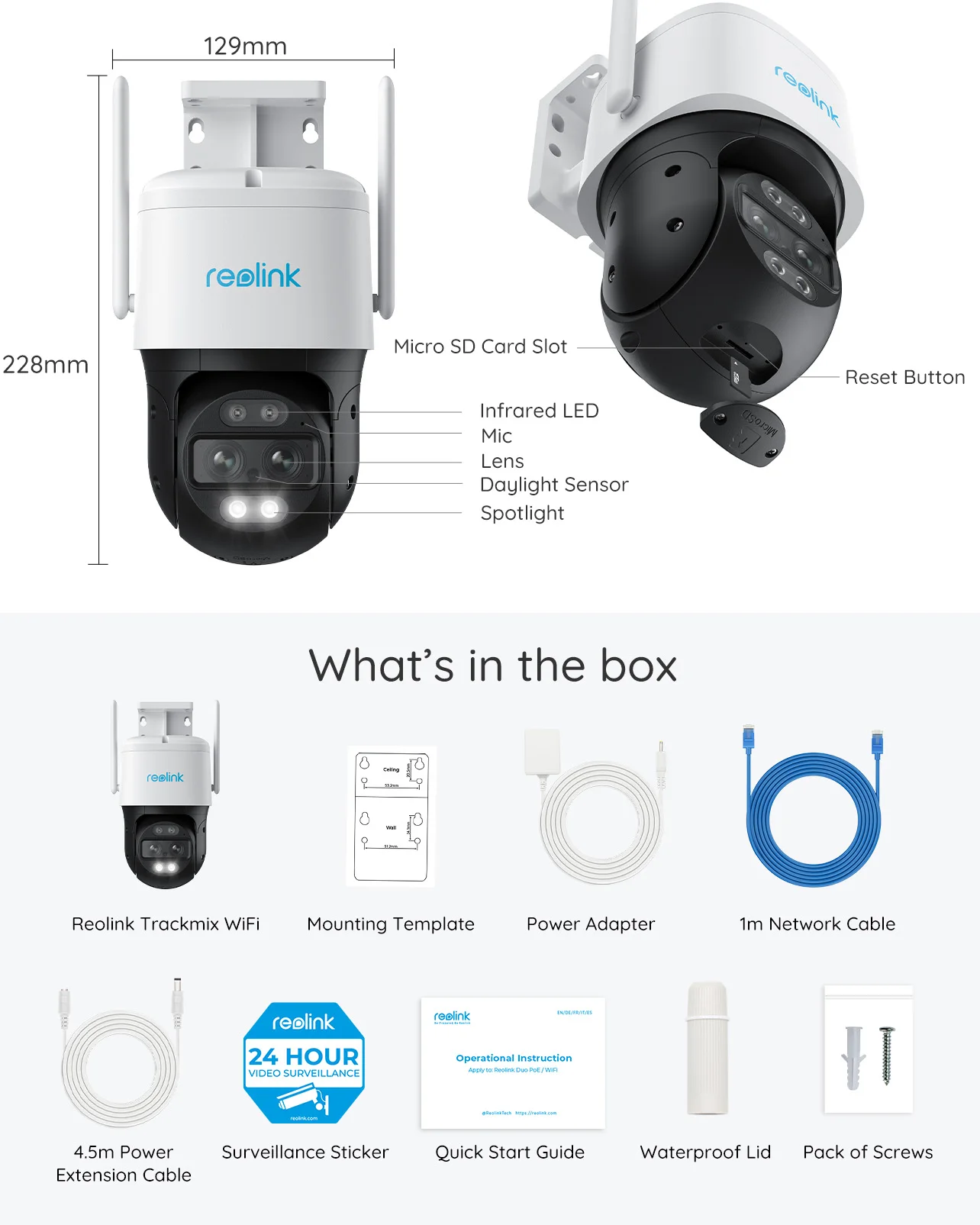

Detail of RLK12-Trackmix WiFi
What's in the Box?
TrackMix WiFi ×4; Mounting Template ×4; Waterproof Lid ×4; Power Adapter ×4; 1m Network Cable ×4; 4.5m Power Extension Cable ×4; Pack of Screws ×4;
Q & A
Q: Which Reolink cameras are compatible with this NVR?
A: RLN12W is compatible with all Reolink IP cameras (except for battery cameras), such as E1 Pro, RLC-510WA, E1 Outdoor, TrackMix WiFi, Duo 2 WiFi, RLC-823A and Video Doorbell. Wired camera needs to be connected via an Ethernet cable and power adapter.
Q: Can the Wi-Fi NVR provide power to PoE IP cameras？
A: No, a Wi-Fi NVR typically cannot provide power to PoE IP cameras directly. PoE (Power over Ethernet) requires a wired connection. To power PoE IP cameras, We recommend purchasing Reolink PoE switch or injector in addition to the Wi-Fi NVR.
Q: Can I add cameras from other brands to this NVR?
A: We strongly recommend using Reolink IP cameras exclusively with RLN12W for optimal performance and compatibility.
Q: Can this NVR connect to non-Wi-Fi 6 routers?
A: To unlock the full potential of this remarkable technology, a Wi-Fi 6 router is better recommended for enhanced networking.
