Compare Your Security Camera Products |
|||
|
Model |
5X Zoom Cam |
16X Zoom Cam |
|
|
Picture |
|
|
|
|
Video & Audio |
Image Sensor |
1/2.8" CMOS sensor |
|
|
Resolution |
3840×2160(8 Megapixels)@25FPS |
||
|
Lens |
f=2.7-13.5mm/Max F1.6 |
f=5.3-86mm/Max F1.6 |
|
|
Video Compression |
H.265/H.264 |
||
|
Zoom |
5X optical zoom & digital zoom |
16X optical zoom& digital zoom |
|
|
Field of View |
Horizontal: 100°-31° |
Horizontal: 54.2°-3.6° |
|
|
Vertical: 55°-17° |
Vertical: 41.7°-2.1° |
||
|
Diagonal: 123°-39° |
– |
||
|
Infrared Night Vision |
Up tp 60m(196ft); |
Up tp 80m(260ft); |
|
|
Color Night Vision |
With spotlights: 2pcs/4w/4000K (Adjustable) |
||
|
Frame Rate |
Main stream: 2fps – 25fps (default: 25fps) |
||
|
Sub stream: 4fps – 15fps (default: 10fps) |
|||
|
Code Rate |
Main stream: 2048Kbps – 8192Kbps (default: 6144Kbps) |
||
|
Sub stream: 64Kbps – 512Kbps (default: 256Kbps) |
|||
|
Audio |
Two-way audio |
||
|
Power |
PoE |
IEEE 802.3at, 48V, active |
|
|
DC Power |
DC 12V⎓2A, <24W |
||
|
Interface |
Power Port |
DC power port |
|
|
Ethernet Port |
One 10M/100Mbps; RJ45 |
||
|
SD Card Slot |
Supports Max. 256GB microSD card |
||
|
Reset Button |
YES |
||
|
Audio In/Out |
Built-in microphone and speaker |
||
|
Pan & Tilt |
PT Angle (Max.) |
Pan: 360°, Tilt: 90° |
|
|
Pan Speed |
1.4°-90°/s (configurable) |
||
|
Tilt Speed |
1.4°-56°/s (configurable) |
||
|
Preset Points |
Suppots 1 guard position & up to 64 preset positions |
||
|
Patrol |
Supports 1 patrol; up to 16 presets per patrol |
||
|
Power-off |
YES |
||
|
Auto Tracking |
YES |
||
|
Software |
Browsers Supported |
Edge, Chrome, Firefox, Safari |
|
|
OS Supported |
PC: Windows, Mac OS; Smartphone: iOS, Android |
||
|
Protocols & Standards |
HTTPS, SSL, TCP/IP, UDP, HTTP,IPv4, UPnP, RTSP, RTMP, |
||
|
User Access |
Max. 20 users (1 admin & 19 user); |
||
|
Other Features |
Smart Alarm |
Motion detection;person detection; vehicle detection; animal detection |
|
|
Recording Modes |
Motion-triggered recording (default); Scheduled recording, 24/7 recording |
||
|
Time Lapse |
YES |
||
|
Smart Home |
Google Assistant; Alexa |
||
|
Working Environment |
Operating Temperature |
-10°C~+50°C(14°F~126°F) |
|
|
Operating Humidity |
10% ~ 90% |
||
|
Weatherproof |
IP66 |
||
|
Mechanical |
Dimensions |
373*177*140mm (Ceiling Mount) |
|
|
Weight |
2.34kg |
||
|
Warranty |
Limited Warranty |
2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/. |
|

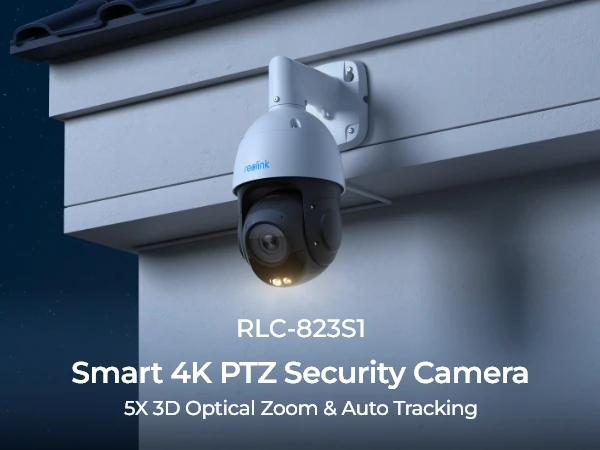

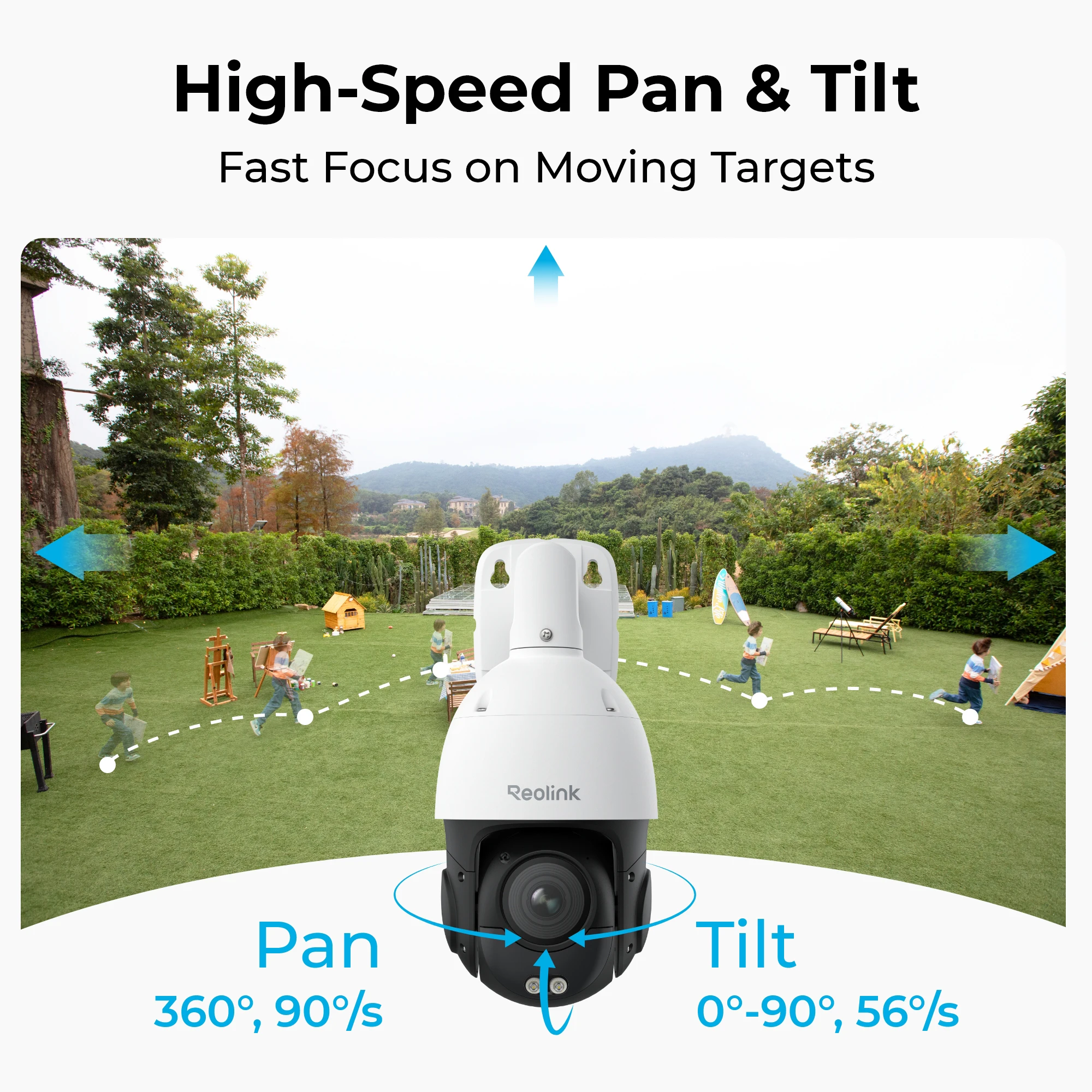

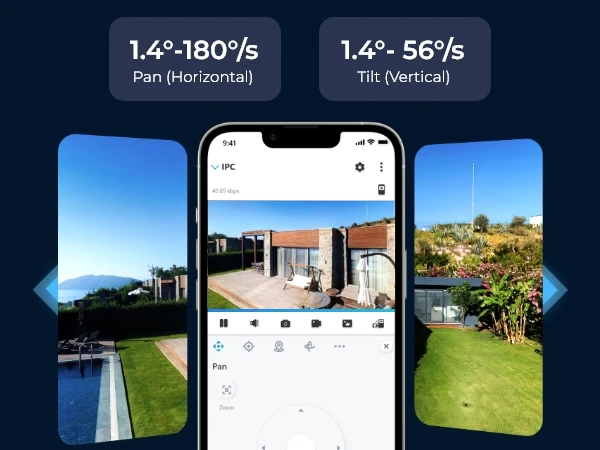

See All-Around with 360° Coverage
Experience complete surveillance from 360° pan and 90° tilt capabilities, complemented by adjustable motor speeds for precise control.
Auto Tracking
Once a person/vehicle/animal is detected, the camera will follow and keep it in sight for however it remains within the area, so you won't miss anything important.
The World Unfolds in Sharp Focus
Coming with a 5X optical zoom lens, the camera can capture sharper close-ups from farther away.
(The 16X Zoom cam support 16X optical Zoom)
Smart Detection
Accurately detect person/vehicle/animal movements for you, greatly reducing false alarms.
Customized Motion Zone
Decide which motion zone will be detected. You won't receive alerts from the areas you have erased.
Dual Warnings
Motion-triggered spotlights and custom siren will be activated to warn off intruders and alert you.
Two-Way Audio
Camera built-in mic and speaker, you can engage in real-time conversation.

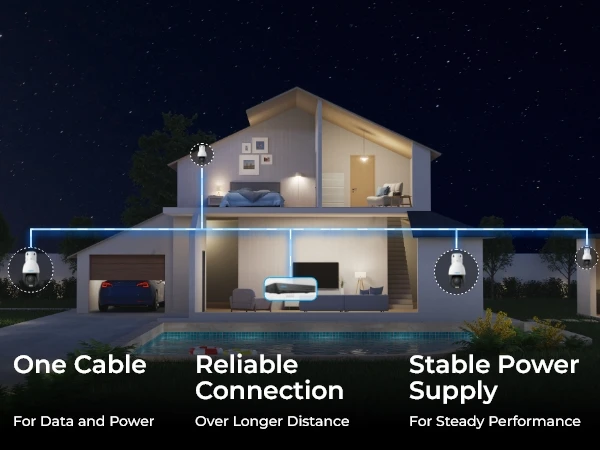

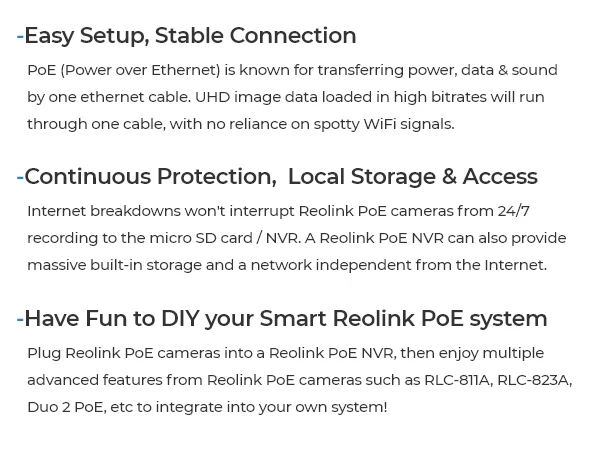

Note: When connected to RLN8-410 or RLN16-410, this feature is available only through the Reolink App/Client.Power over Ethernet Tech,Easy Setup
Equipped with crafted mounting brackets, this camera can be easily installed on the ceiling or wall.
See Through the Darkness
Camera features Color/Black & White Night Vision, catering to your diverse preferences.

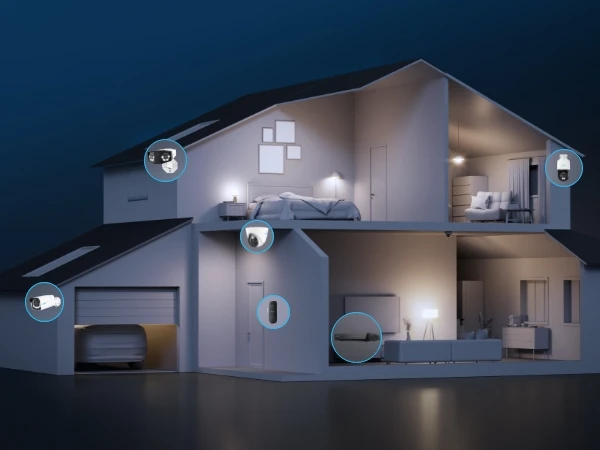

DIY Your Security System
Build your personalized security setup with a variety of options provided by Reolink.
Remote Camera Access, No Subscription Needed
Supports max.12 devices to live stream at the same time (2 mainstreams & 10 substreams).
Stunning Time-Lapse Videos
Condense an entire day's events into captivating minutes. Enjoy mesmerizing transformations.
Versatile Storage Options
Camera supports 24/7 continuous, motion-triggered, or scheduled recording. Store footage on a microSD card, Reolink NVR, or FTP server.

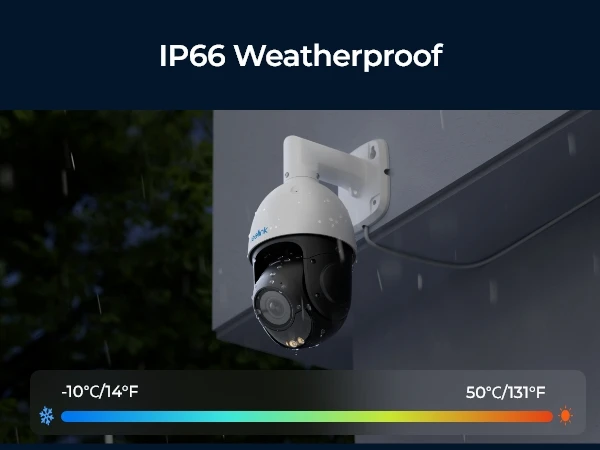

Reliable Guardian in Any Weather
*Built to be water resistant, this IP66-rated camera endures extreme weather conditions.
