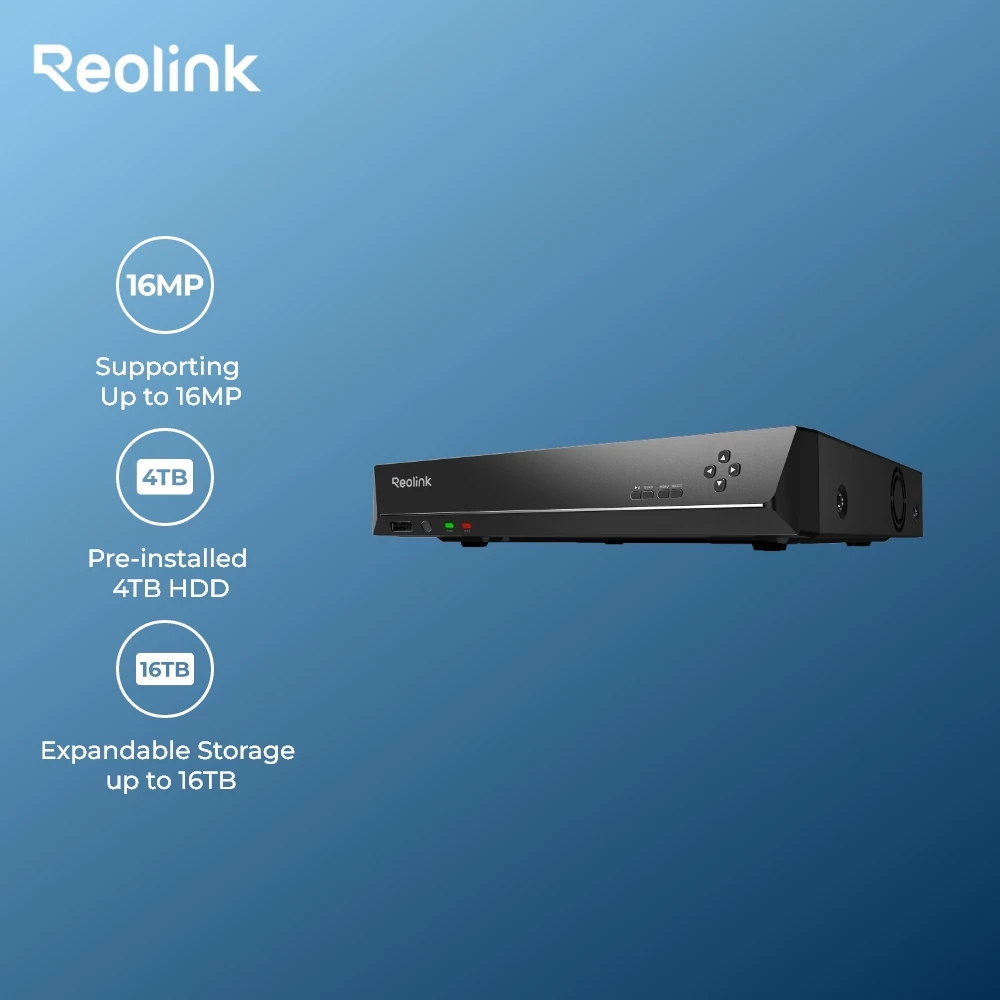

16 Channel PoE Network Video Recorder with 4TB HDD
for Reolink Security IP Cameras (52V Power Adapter, US/EU/UK/AU plug available )

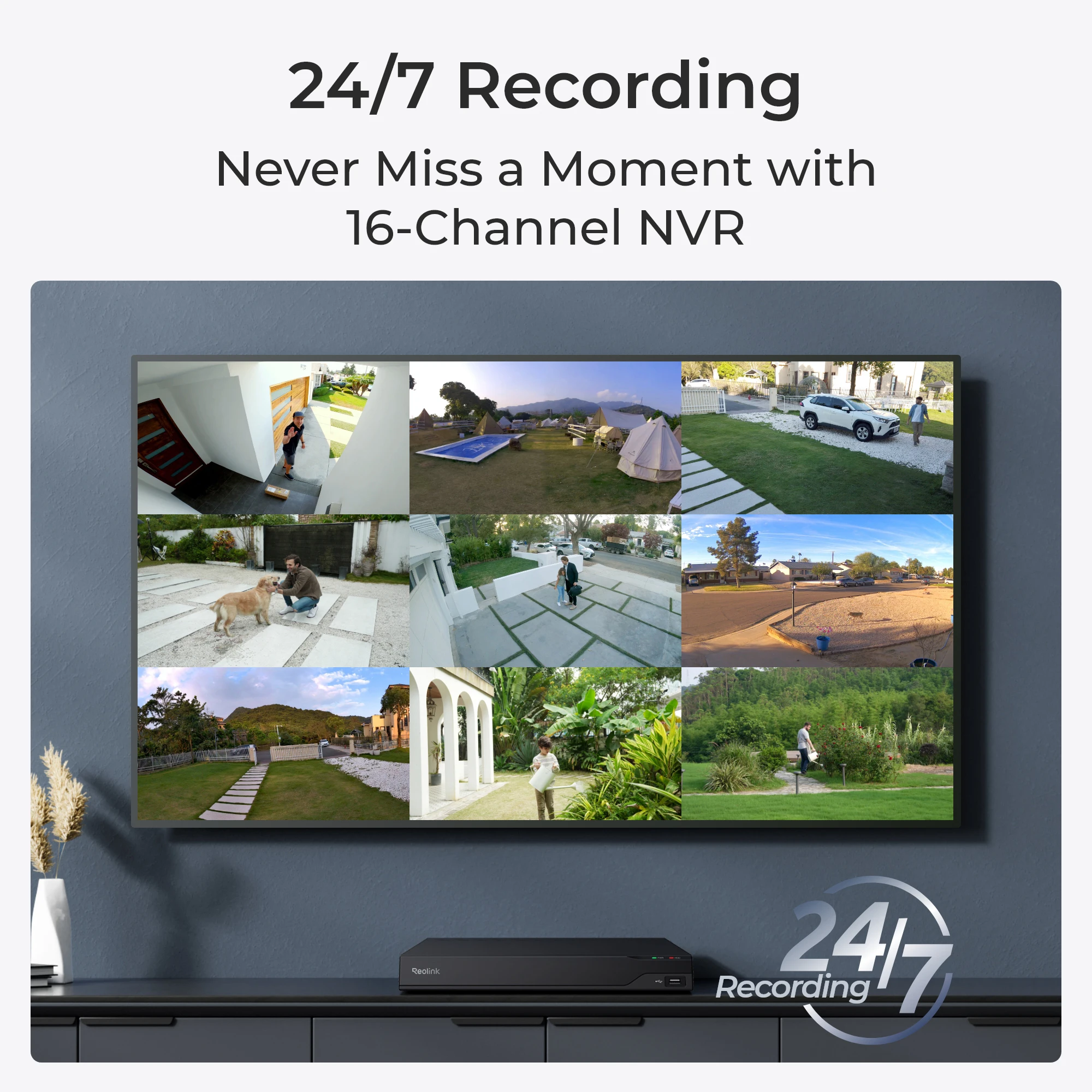

24/7 Continuous Recording
If you want 24/7 video recording or if you have multiple IP cameras to manage, this Reolink NVR is your best choice.
·   You may install up to 12TB HDD for 24/7 recording and monitoring.
·   Support all cameras recording at the same time (up to 16 cameras).
·   The motion detection recording function will trigger recording only when motion is detected. It's much flexible andÂ
  helpful for longer recording.

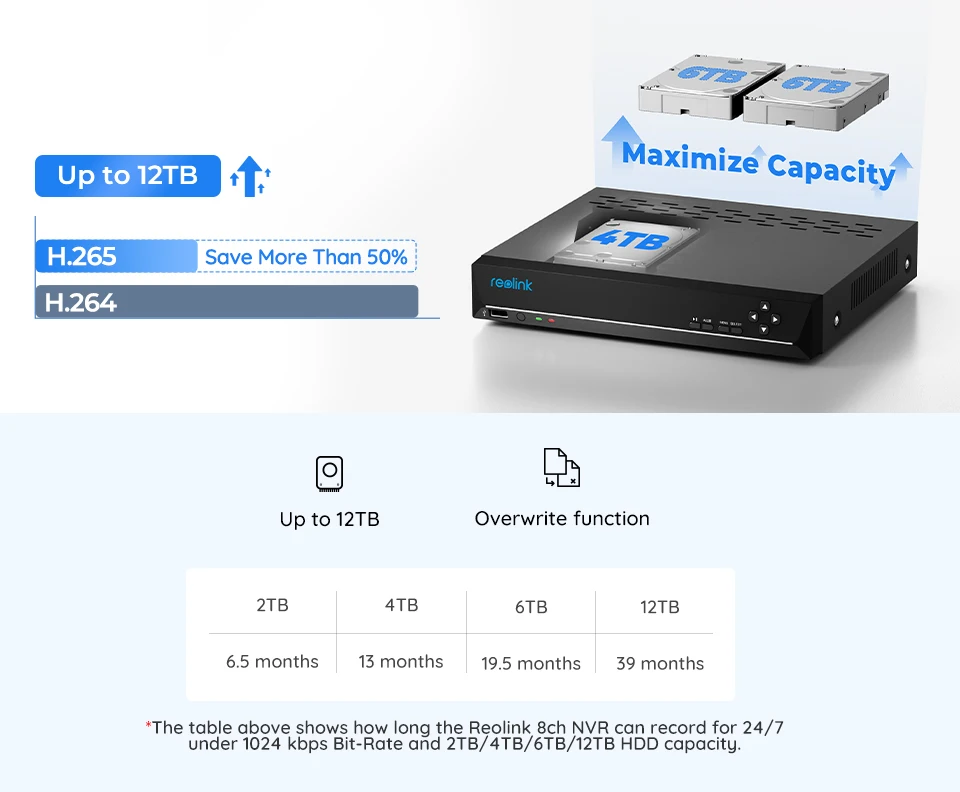

·  This NVR has 2 x SATA interface(1x4TB HDD inculded.) Each SATA supports 6TB HDD. Capacity will be up to 12TB.
Incredibly Clear Videos in 12MP & Excellent Night Vision
Higher resolution means more image details to be captured. You will definitely have the best chance to see every image details as you wish.
Motion Detection-Rich Alerts & Set Motion Zone
When any of the cameras detect motion, the 16CH PoE NVR could buzz to call your attention. It can also send email andÂ
push to you and trigger Recording. In this way, you could be informed in real time when invasion happens.
*16CH PoE NVR on sale now can work with cameras with person/vehicle detection and 12MP cameras.
Set Motion Detection Schedule for NVR
The motion detection on NVRs is enabled all the time by default, users can schedule when the motion detection will
 work and when not according to actual needs.
Video Playback — Recall Events and Moments
The playback feature of this DVR 16CH PoE NVR allows you to know the whole events.
· Replay significant evidence or funny video records.
· 4-channel simultaneous playback
· You can quickly search for any event that happened at any time.
· The timer axis design under the split screen makes it convenient for you to freely go back to different days, hours, or minutes to see the events you missed.

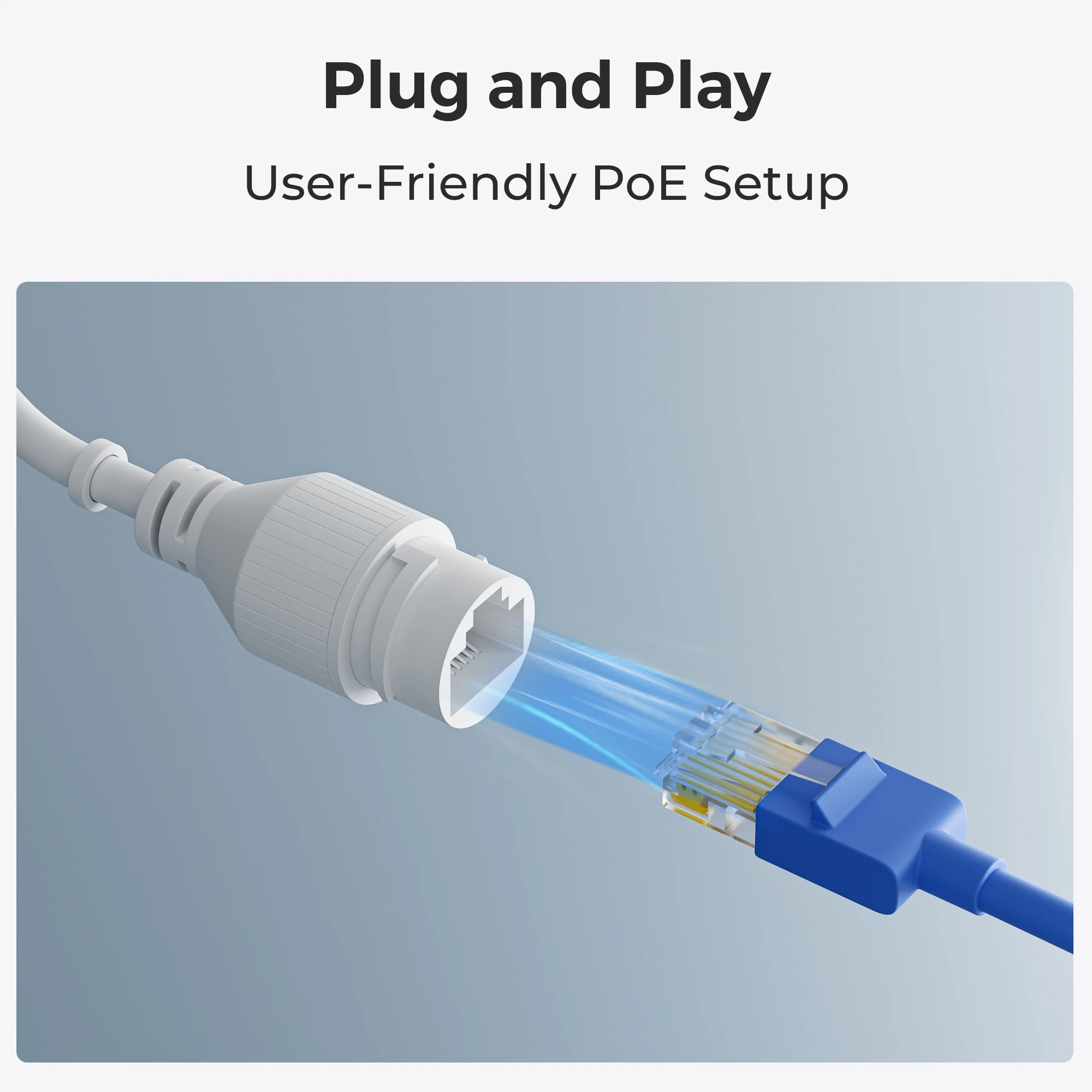

PoE – Easy Setup & Real Plug and Play

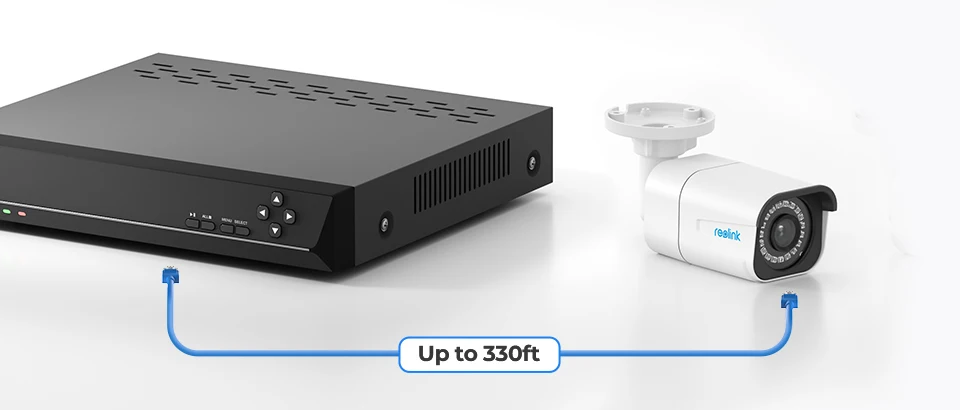

A real plug and play network video recorder! This 16CH PoE NVR features PoE (Power over Ethernet), with a singleÂ
network cable connecting each of your IP cameras to the NVR for both power supply and video signal transmission.Â
Easy wiring – the wiring process can't be simpler for DIY enthusiasts.
Work with Reolink Wifi Camera and PoE Camera
Set Motion Zone & Free Firmware Update & Excellent Night Vision
You can customize the motion zone to your like,Â
deciding where objects'movements will be detected and where they will not.
*Free Reolink firmware update helps your camera/NVR keep up with the up-to-date features as well as fixing any bugs or glitches.

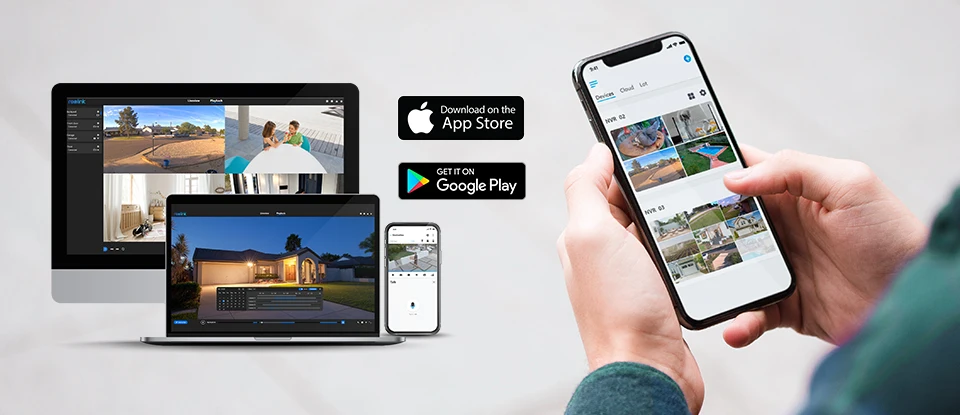

Remote Viewing, Anytime, from Anywhere
No matter where you are, you can remotely access the NVR to see live streaming and stay connected.
Remotely view the NVR via: free Reolink App on your mobile device, free Reolink Client on your computer, IE web browser.
DIY security camera system
Use this NVR with Reolink PoE cameras and you can get a professional, reliable and DIY security camera system.Â
You can play back any recorded video, back up local data, and do more.Â
For more, refer to RLK16*-410B8 NVR security system.
|

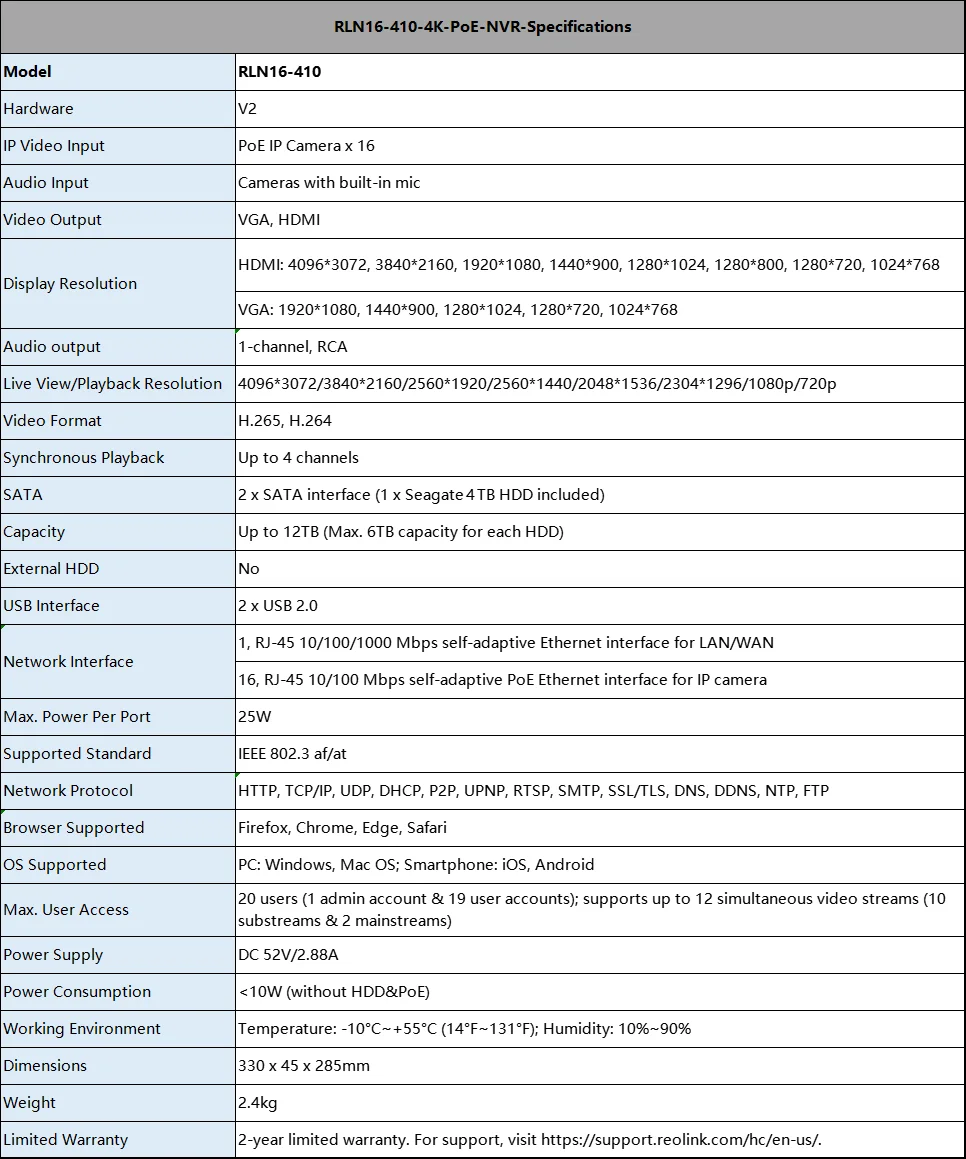

16CH PoE NVR-4K-PoE-NVR-Specifications |
|
|
 Model |
 16CH PoE NVR |
|
 Hardware |
 V2 |
|
 IP Video Input |
 PoE IP Camera x 16 |
|
 Audio Input |
 Cameras with built-in mic |
|
 Video Output |
 VGA, HDMI |
|
 Display Resolution |
 HDMI: 4096*3072, 3840*2160, 1920*1080, 1440*900, 1280*1024, 1280*800, 1280*720, 1024*768 |
|
 VGA: 1920*1080, 1440*900, 1280*1024, 1280*720, 1024*768 |
|
|
 Audio output |
 1-channel, RCA |
|
 Live View/Playback Resolution |
 4096*3072/3840*2160/2560*1920/2560*1440/2048*1536/2304*1296/1080p/720p |
|
 Video Format |
 H.265, H.264 |
|
 Synchronous Playback |
 Up to 4 channels |
|
 SATA |
 2x SATA interface (1xSeagate 4TBHDD included) |
|
 Capacity |
 Up to 12TB (Max. 6TB capacity for each HDD) |
|
 External HDD |
 No |
|
 USB Interface |
 2 x USB 2.0 |
|
 Network Interface |
 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface for LAN/WAN |
|
 16, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera |
|
|
 Max. Power Per Port |
 25W |
|
 Supported Standard |
 IEEE 802.3 af/at |
|
 Network Protocol |
 HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP |
|
 Browser Supported |
 Firefox, Chrome, Edge, Safari |
|
 OS Supported |
 PC: Windows, Mac OS; Smartphone: iOS, Android |
|
 Max. User Access |
 20 users (1 admin account & 19 user accounts);  supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams) |
|
 Power Supply |
 DC 52V/2.88A |
|
 Power Consumption |
 <10W (without HDD&PoE) |
|
 Working Environment |
 Temperature: -10°C~+55°C (14°F~131°F); Humidity: 10%~90% |
|
 Dimensions |
 330 x 45 x 285mm |
|
 Weight |
 2.4kg |
|
 Limited Warranty |
 2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/. |
*For all Reolink NVR hardware version and supported IPC model, we listed the information below:
|
NVR model# |
NVR type |
Hardware version |
Support IPC version/model(battery cameras are not included) |
Support Smart Person/Vehicle Detection or not |
Support Max single HDD capacity |
Interface |
|
8CH PoE NVR |
POE |
H3MB02 |
all 4mp/5mp IPC |
N |
4 TB |
old |
|
8CH POE NVR-E |
POE |
H3MB16 |
all 4mp/5mp/8mp IPC |
N |
4 TB |
old |
|
8CH PoE NVR |
POE |
H3MB18 |
all 4mp/5mp/8mp/12mp IPC |
Y(need to upgrade the firmware) |
6TB |
New UI |
|
8CH PoE NVR |
POE |
N2MB02 |
all 4mp/5mp/8mp/12mp IPC |
Y |
6TB |
New UI |
|
8CH POE NVR |
POE |
N3MB01 |
all 4mp/5mp/8mp/12mp IPC |
Y |
6TB |
New UI |
|
16CH PoE NVR |
POE |
H3MB02 |
all 4mp/5mp IPC |
N |
4 TB |
old |
|
16CH PoE NVR |
POE |
H3MB06 |
all 4mp/5mp IPC |
N |
4 TB |
old |
|
16CH PoE NVR |
POE |
H3MB18 |
4mp/5mp/8mp/12mp IPC |
Y |
6TB |
New UI |
|
RLN4-410 |
POE |
H3MB17 |
all 4mp/5mp/8mp IPC |
N |
4TB |
old |
|
RLN4-211W |
WiFi |
H3MB13 |
RLC-211w&RLC-210W &rlc-410W-4mp only |
N |
4TB |
old |
|
RLN4-210W |
WiFi |
H2MB11 |
RLC-210W &rlc-410W-4mp only |
N |
4TB |
old |
Note:Â To upgrade the firmware for your nvr system, please choose the right hardware version since different hardware versions' firmware can't be mixed.Â
If you need to upgrade your NVR's firmware, please find it here:Â https://reolink.com/download-center/
Q: Can I mix different kinds of Reolink cameras? (e.g. 5mp and 8mp etc)
A:Yes. Our NVR works with Reolink's POE cameras and Wifi cameras.(Except Reolink battery cameras).
Q: Can reolink nvr work with any brand IP camera for add ons or only reolink cameras?
A:Hello, it will only work with reolink Cameras.
Q: What router work best with reolink poe nvr 16 ch ip home security camera system using RLC-510WA cameras?
A:Hi, please make sure the router supports 2.4/5GHZ.
Q: What accessories comes with the NVR only ?
A:Hello, here is what's in the box:
1 x 16CH PoE NVR
1 x 48V NVR adaptor
1 x USB Mouse
1 x 1M Cat5 Cable
1 x 1M HDMI Cable *1
1 x Quick Start Guide Brochure
Q: Can WiFi ip camera work with this PoE NVR?
A:Yes, Reolink WiFi cameras can be connected to Reolink PoE NVR in an indirect way. You can follow these steps to connect them:
Step 1. Connect the camera to a wifi router via wifi signals, and it needs to be powered via a power adapter.
Step 2. Connect the NVR to the same router by a network cable.
The NVR will pick up all the cameras on the same network.
Q: Does this nvr (16CH PoE NVR ) support all current smart AI camera features in the rlc-820a?
A:Hello, Reolink PoE NVR can work with all the Reolink PoE cameras we currently released, including RLC-820A. However, when the stand-alone camera is connected with the NVR, the smart home function, SD card recording and time-lapse function won't be available. Any further questions, please feel free to contact us via Aliexpress Message.
Q: Can this nvr (16CH PoE NVR) handle recording all 16 cameras at 4k 8mp, or is the quality lower when using many cameras?
A:Reolink PoE NVR can record all the 4K cameras in 4K resolution with the bit rate you set. However, you may need to add another HDD in order to store all the video footage.
Q: How do I setup to receive email alerts?
A:You can set those up by hitting the wheel icon upper right corner and set for each camera
Q: what hardware verion does 16CH PoE NVR have?
A:You can check here for more information: https://support.reolink.com/hc/en-us/articles/900000584903.
And for the 16CH PoE NVR currently sold on Aliexpress, it comes with the H3MB18 hardware version, which supports up to 12MP Reolink PoE cameras and cameras with Person/Vehicle Detection.
