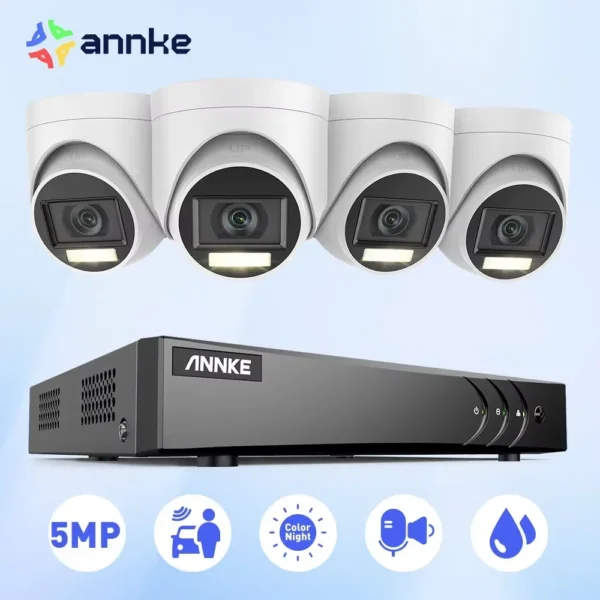

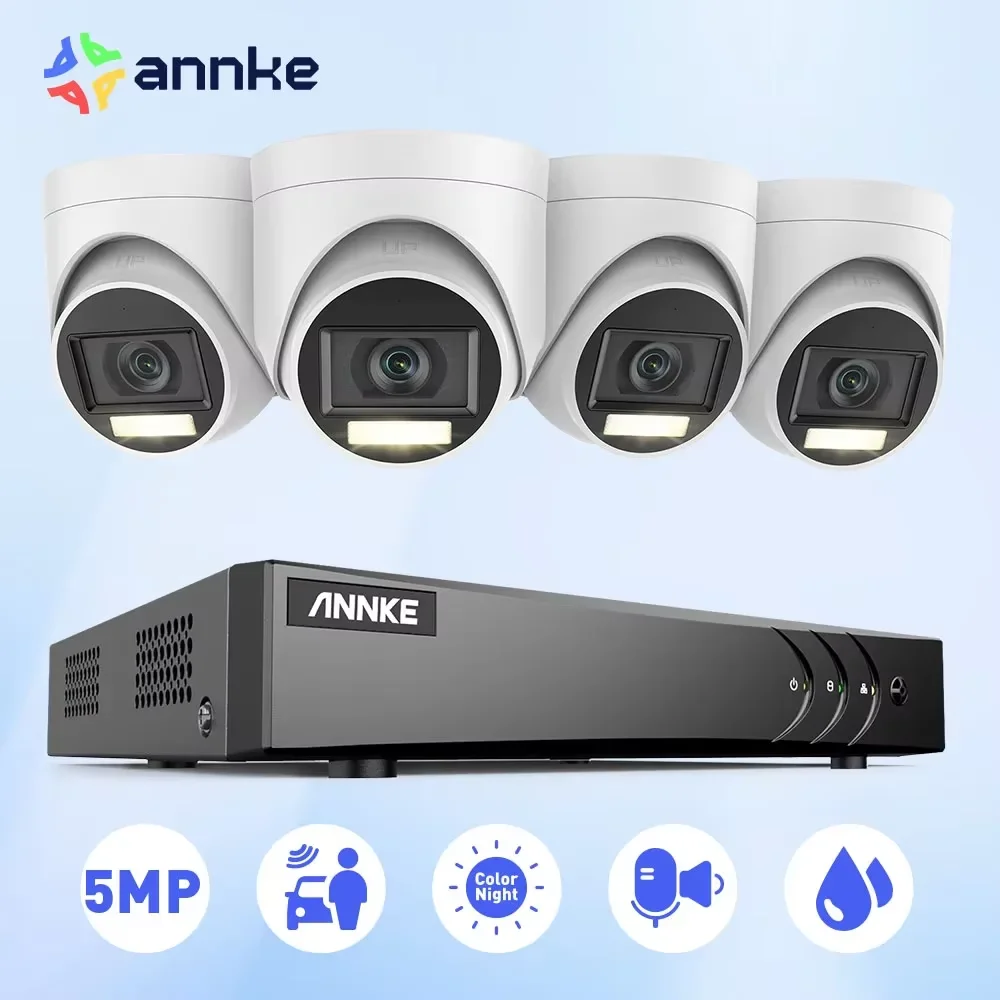

ANNKE 8CH 5MP Lite Video Surveillance System 5IN1 H.265+ DVR With 4X 5MP PIR Detection Dome Waterproof Security Cameras CCTV Kit

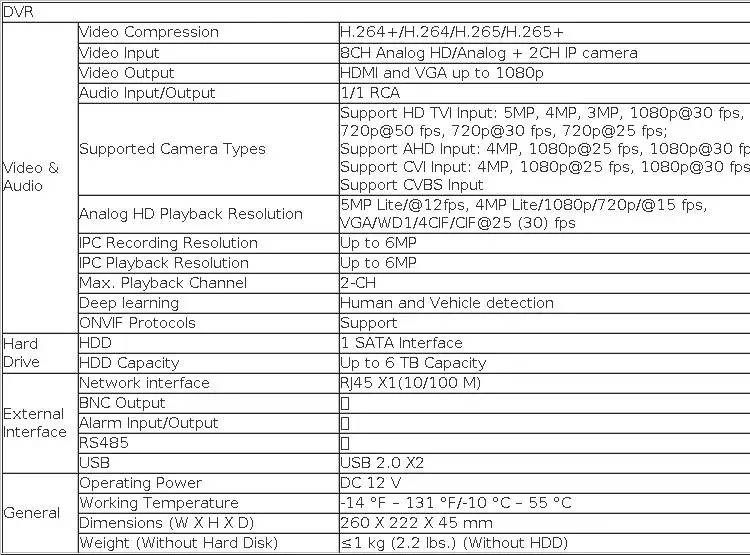

DVR

Video & Audio

Video Compression

H.264+/H.264/H.265/H.265+

Video Input

8CH Analog HD/Analog + 2CH IP camera

Video Output

HDMI and VGA up to 1080p

Audio Input/Output

1/1 RCA

Supported Camera Types

Support HD TVI Input: 5MP, 4MP, 3MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps;
Support AHD Input: 4MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps;
Support CVI Input: 4MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps;
Support CVBS Input

Analog HD Playback Resolution

5MP Lite/@12fps, 4MP Lite/1080p/720p/@15 fps,
VGA/WD1/4CIF/CIF@25 (30) fps

IPC Recording Resolution

Up to 6MP

IPC Playback Resolution

Up to 6MP

Max. Playback Channel

2-CH

Deep learning

Human and Vehicle detection

ONVIF Protocols

Support

Hard Drive

HDD

1 SATA Interface

HDD Capacity

Up to 6 TB Capacity

External Interface

Network interface

RJ45 X1(10/100 M)

BNC Output

ï¼

Alarm Input/Output

ï¼

RS485

ï¼

USB

USB 2.0 X2

General

Operating Power

DC 12 V

Working Temperature

-14 °F – 131 °F/-10 °C – 55 °C

Dimensions (W X H X D)

260 X 222 X 45 mm

Weight (Without Hard Disk)

â‰Â¤1 kg (2.2 lbs.) (Without HDD)
